310-87-120-41-001

Name: 310-87-120-41-001 - Communica [Part No: 310-87-120-41-001]
Brand: Communica
SKU: 310-87-120-41-001
Price: 18.45 ZAR
Availability: InStock

SKU: 310-87-120-41-001

BRAND: Communica

In Stock
R 21.22_{(inc VAT)}
R 18.45_{(ex VAT)}

Collections: Connectors, Prototyping Products

Type: PCB Connectors

Category: PCB Sockets

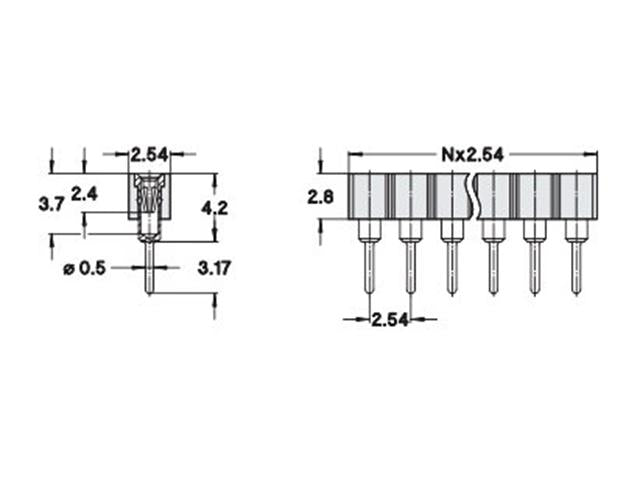

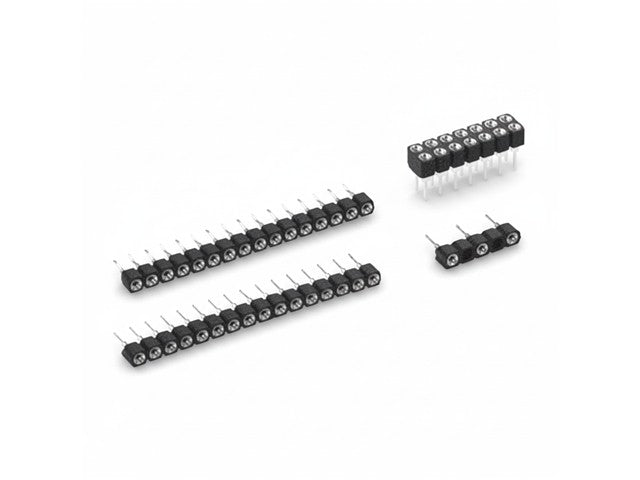

IC Socket Strip Tin/Gold Flash 20W

IC Socket Strip

Specifications

INSULATOR : Black glass filled polyester PCT-GF30-FR
FLAMMABILITY : UL 94V-0
SLEEVE : Brass CuZn36Pb3 (C36000) ; Plating : Tin
CONTACT CLIP (4 FINGER) : Beryllium copper (C17200) ; Plating : Flash Gold
MATING PIN Ø : 0.40 to 0.56 mm
FORCES : 2N typ. insertion 1N typ. withdrawal (polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE : Min. 500 cycles
RATED CURRENT : 3A
CONTACT RESISTANCE Max. 10mΩ
DIELECTRIC STRENGTH : Min. 1’000 VRMS

Additional Information

Device	Socket
Type	IC \| Socket \| Strip
Gender	Socket
No. of Contacts	20
No. of Pins	20
Termination	Straight Pins Solder Tail
Pin Plating	Tin/Gold flash
Size	2.54mm
Row Positions	Single Row
