709401

SKU: 709401

BRAND: Communica


In Stock
R 7.19 (inc VAT)
R 6.25 (ex VAT)

Collections: Connectors, Prototyping Products

Type: PCB Connectors

Category: Pin Headers

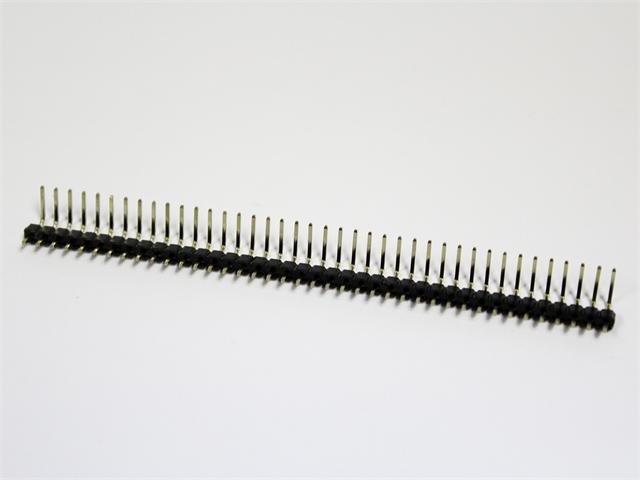

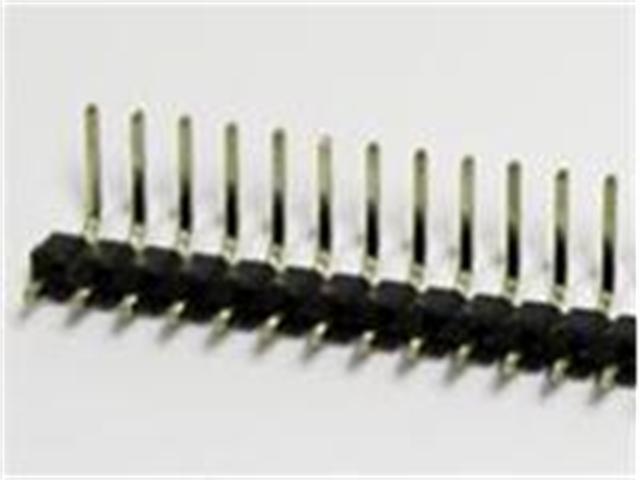

2.54mm PCB Pin Connector • 40 way in Single Row • Right Angled Pins • Gold Plated

PCB Pin Connector

Specifications

  • Contact Resistance : 30mΩ max.at DC 100 mA
  • Insulator Resistance : l000MΩ min.at DC 500V
  • Current Rating : lAMP

Dielectric Withstanding

  • Voltage : AC 500V For 1 minute
  • Operating Temperature :-55°C ~ 105°C
  • Contact : Brass
  • Housing : PBT &30% Glass Fiber(UL 94V-0)

Additional Information

Group0 Pin Header
Group PCB Connector
Device Connector
Type PCB
Gender Pin
No. of Contacts 40
No. of Pins 40
Termination Right Angled Pins
Pin Plating Gold
Size 2.54mm
Row Positions Single Row
