DGU MOTORS+ENCODER KIT+WHEELS

SKU: DGU MOTORS+ENCODER KIT+WHEELS

BRAND: Dagu

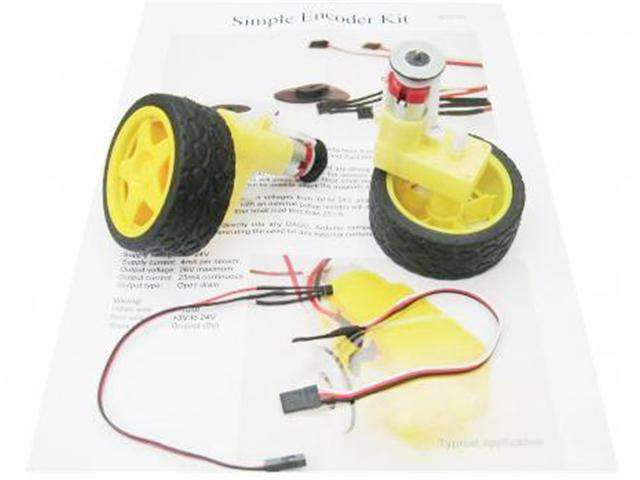

RS034 Simple Motor and Encoder Kit with 2 Motors 2 Wheels and 2 Encoder Kit

Overview

Features

Specification

  • Include : 2 wheels, 2 motors, 2 encoder kit and screws
  • Encoder Type : 8-pole Neodymium Magnet and Hall-effect Sensor
  • Encoder Output : Open drain with Short Circuit Protection
  • Encoder Voltage : 3~24V with Reverse Polarity Protection
  • Encoder Resolution :
    • 8 state changes / revolution when mounted on the output shaft
    • 948 state changes / revolution when mounted on the motor shaft
  • Motor voltage : 3~6V
  • No Load Current : 200mA
  • Stall Current :
    • 3A @ 6V
    • 1.5A @ 3V
  • Gearbox Ratio : 118.5:1
  • Wheel Speed : 135rpm @6V unloaded
