DGU SIMPLE ENCODER KIT

SKU: DGU SIMPLE ENCODER KIT

BRAND: Dagu


RS030 Simple Encoder Kit with 8pole Magnets + 2 Hall Effect Sensors

Overview

Features

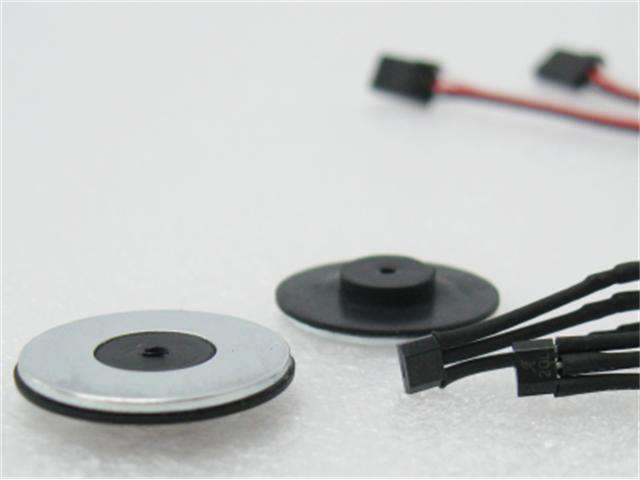

  • The simple encoder kit from DAGU consists of two neodymium 8-pole magnets with rubber hubs and two hall-effect sensors terminated with 150mm (6inch) cable and 3 pin female servo headers
  • The magnets have 4 north poles and 4 south poles and are strong enough that the sensor can detect the poles from more than 3mm (1/8inch)
  • This means that the sensors do not need to be precisely mounted to detect the poles
  • The rubber hubs will press fit over most small motor and drive shafts used in low power gearboxes
  • A small screw may also be used to attach the magnets in some cases
  • The hall-effect sensors will work on voltages from 3V to 24V and include reverse polarity protection
  • The open drain output, when fitted with an external pullup resistor will drive any logic circuit from 3V to 24V and can also drive a LED or any other small load less than 25mA
  • These sensors can plug directly into any DAGU, Arduino compatible controller and use the processors internal pullup resistors eliminating the need for any external components or wiring

Specification

  • Supply voltage: 3V-24V
  • Supply current: 4mA per sensor
  • Output voltage: 26V maximum
  • Output current: 25mA continuous
  • Output type: Open drain
  • Wiring :
    • White wire: Output
    • Red wire: +3V to 24V
    • Black wire: Ground (0V)
