HKD MICRO SERVO 4.8V-6V MG90-90D

Name: HKD MICRO SERVO 4.8V-6V MG90-90D - Communica [Part No: HKD MICRO SERVO 4.8V-6V MG90-90D]
Brand: Communica
SKU: HKD MICRO SERVO 4.8V-6V MG90-90D
Price: 65.22 ZAR
Availability: InStock

SKU: HKD MICRO SERVO 4.8V-6V MG90-90D

BRAND: Communica

In Stock
R 75.00_{(inc VAT)}
R 65.22_{(ex VAT)}

Collections: DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Servo Motors

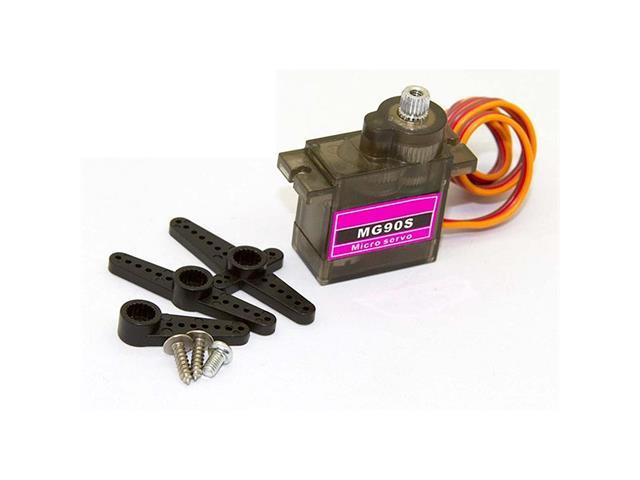

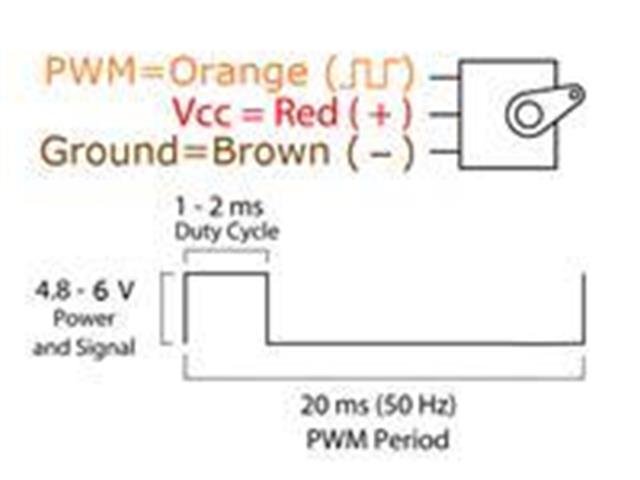

Towerpro MG90S 13G Metal Gear RC Micro Servo MG90S 0-90° When Driven with PWM of 1-2mS

13G Metal Gear RC Micro Servo

Overview

A mini sized servo which for its small size packs a powerful punch and is equipped with full metal gearing to handle tough control situations.

Specifications

Weight : 13.4g
Dimension : 22.8 x 12.2 x 28.5mm
Stall torque : 1.8kg/cm(4.8V )2.2kg/cm(6V)
Operating speed : 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)
Operating voltage : 4.8-6.0V
Dead band width : 5us
Modulation : Analog
Gear Type : Metal
Rotation/Support : Dual Bearings
All servos come with arm set

Downloads

How Servo Motors Work

Additional Information

Device	Micro Servo
Type	13G \| Metal Gear \| RC
