HKD STEPPER MOTOR/PLANET GEARBOX

Name: HKD STEPPER MOTOR/PLANET GEARBOX - Communica [Part No: HKD STEPPER MOTOR/PLANET GEARBOX]
Brand: Communica
SKU: HKD STEPPER MOTOR/PLANET GEARBOX
Price: 773.91 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: HKD STEPPER MOTOR/PLANET GEARBOX

BRAND: Communica

R 890.00_{(inc VAT)}
R 773.91_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Stepper Motor Gearbox

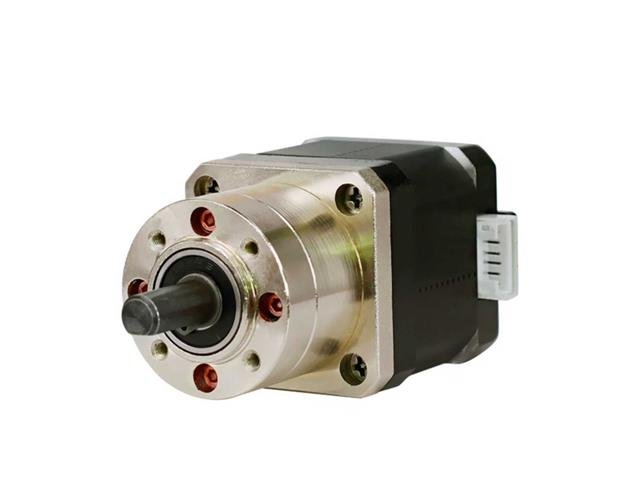

Bipolar Stepper Motor with Planet Gear Box (18KG.CM). (Gear Ratio : 5.18). Standard 8mm - Diameter D Type Output Shaft. 1.8° Step Angle (200 Steps/Revolution)

Bipolar Stepper Motor

Specifications

Step Angle : 1.8°
Holding Torque : 1.68Nm
Rated Current/phase : 1.68A
Phase Resistance : 1.65ohms
Recommended Voltage : 12-24V
Inductance : 3.2mH ± 20%(1KHz)
Gearbox Type : Planetary
Gear Ratio : 5.18
Efficiency : 90%
Backlash at No-load : <=1°
Max.Permissible Torque : 2Nm(283oz-in)
Moment Permissible Torque : 4Nm(566oz-in)
Shaft Maximum Axial Load : 50N
Shaft Maximum Radial Load : 100N
Color : silver + black
Material : metal + ABS

Package Contents:

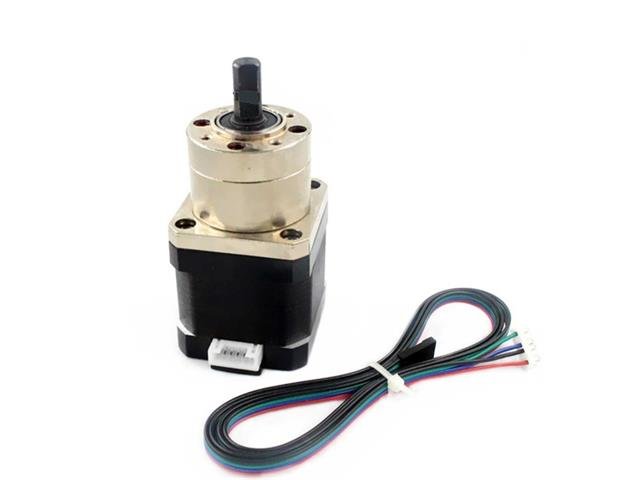

1Pc x Stepper Motor(with Connecting Cable)

Downloads

Datasheet - HKD STEPPER MOTOR/PLANET GEARBOX

Additional Information

Device	Stepper Motor
Type	Bipolar

Upgrade your projects with the HKD Stepper Motor and Planet Gearbox, offering 18KG.CM torque and a 5.18 gear ratio for precision control. This reliable motor features a compact design with a 1.8° step angle, ensuring smooth operation and efficiency. Perfect for robotics and automation, it delivers exceptional performance and durability.
