SPF STEPPER MOTOR NEMA16 12V

Name: SPF STEPPER MOTOR NEMA16 12V - Communica [Part No: SPF STEPPER MOTOR NEMA16 12V]
Brand: SparkFun
SKU: SPF STEPPER MOTOR NEMA16 12V
Price: 262.61 ZAR
Availability: OutOfStock

SKU: SPF STEPPER MOTOR NEMA16 12V

BRAND: SparkFun

Sold Out
R 302.00_{(inc VAT)}
R 262.61_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Stepper Motors

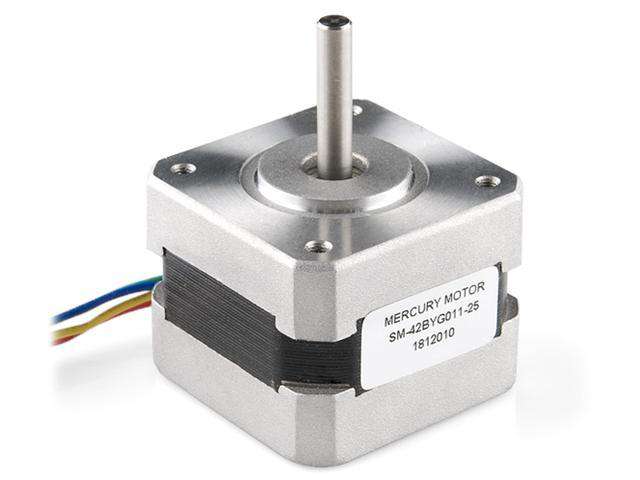

ROB-09238 Bipolar Stepper Motor NEMA16 12V with a 4-wire Cable attached.

Overview

This is a simple, but very powerful Bipolar Stepper Motor with a 4-wire Cable attached.

Features

Step Angle (degrees) : 1.8
2 Phase
Rated Voltage : 12V
Rated Current : 0.33A
Holding Torque : 2.3kg*cm
5mm Diameter Drive Shaft
Winding Resistance : 32.6 O
Winding Inductance : 48 mH
Max Flux Linkage : 1.8 Vs
Maximum Detent Torque : 0.016 N.M
Total inertia (kg.m.m) : 3.5 Kg.m.m
Total friction (kg.m/s) : 4 Kg.m/s
NEMA 16 Mounting Hole Pattern (31mm)
Motor Width : 42mm

Specification

Downloads

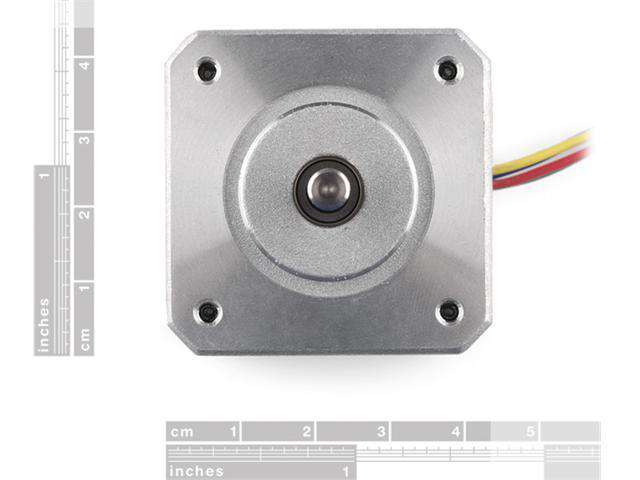

Dimensions - SPF STEPPER MOTOR NEMA16 12V

Discover the power of the SPF STEPPER MOTOR NEMA16 12V, designed for precision and performance. With a 1.8-degree step angle and robust holding torque, this motor is perfect for your robotics and automation projects. Enhance your creations with reliable 12V operation and a compact design that fits seamlessly into your setups.
