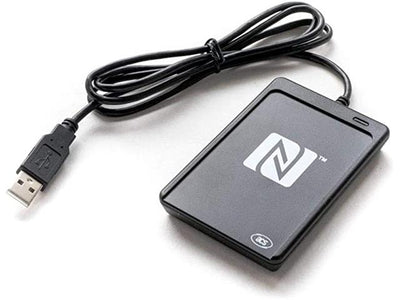

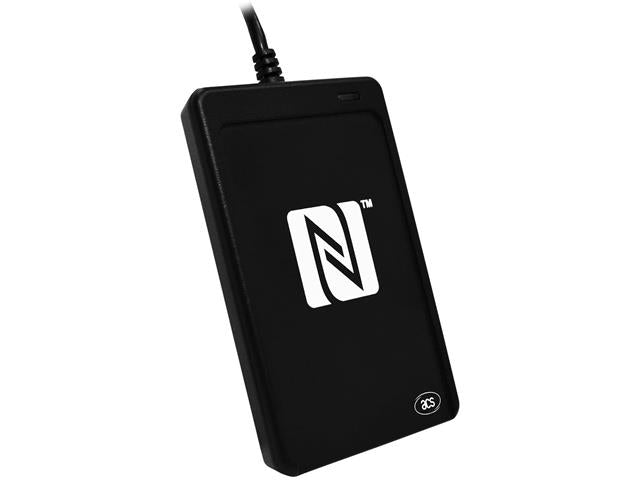

ACS ACR1252U NFC READER 13.56MHZ

SKU: ACS ACR1252U NFC READER 13.56MHZ

BRAND: ACS


NFC Reader/Writer P2P with SAM

NFC Reader/Writer P2P with SAM

Overview

ACR1252U USB NFC Reader III is an NFC Forum-certified PC-linked reader, developed based on 13.56Mhz contactless technology. It has a SAM (Secure Access Module) slot which can be used together with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.

ACR1252U is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used).

Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart posters.

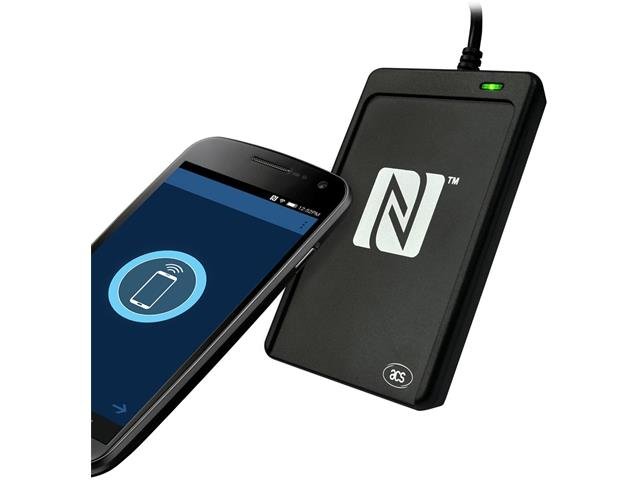

The ACR1252U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR1252U with ease.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader:
    • Read/write speed up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
    • Supports MIFARE® 7-byte UID, MIFARE® Plus, and MIFARE® DESfire
    • Built-in anti-collision feature (only 1 tag is accessed at any time)
    • One ISO 7816–compliant SAM slot (Class A)
    • NFC Support:
      • NFC Reader/Writer Mode
      • Peer-to-Peer Mode
      • Card Emulation Mode
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
    • User-controllable bi-color LED
    • User-controllable buzzer
    • SAM Slot

Specifications

Physical Characteristics
Dimensions (mm) 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight (g) 81 g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Fixed
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL
MIFARE® Classic Card, T=CL
ISO18092, NFC Tags
FeliCa
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5V)
Protocol T=0; T=1
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950
ISO 18092
ISO 14443
ISO 7816 (SAM Slot)
USB Full Speed
PC/SC
CCID
NFC Forum Certification Mark
Felica Performance Certification
J-LIS (Japan)
VCCI (Japan)
MIC (Japan)
KC (Korea)
Microsoft® WHQL
CE
FCC
RoHS
REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows® CE
Windows®
Linux®
MAC OS®
Solaris
Android™

Downloads

Additional Information

Device NFC Reader/Writer
Type P2P with SAM
