Aiphone Analog 5CH Master Station, Supports up to 6 Master, Sub or Door Stations, PSU:12VDC, Press-to-Talk, Release To Listen At Master Station, 40dB, Voice & Call Tone Volume Controls, Wiring Distance:650' W/22AWG, 1600' W/18AWG
Analog 5CH Master Station
Overview

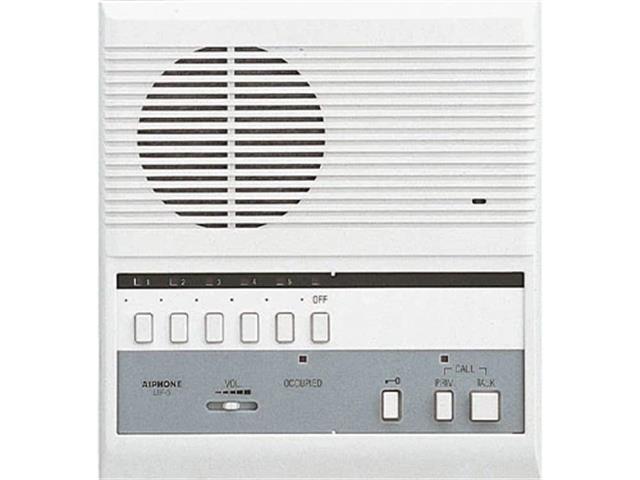

The LEF-5 is a selective calling open voice style master station with a capacity of up to 6 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations up to its maximum capacity.
Incoming calls from a sub or door station are annunciated with a momentary electronic mono-tone and an LED, remaining lit for approximately 20 seconds. Communication at the calling master is press-to-talk, release-to-listen. The person at the receiving station speaks hands-free. The person at the master station can selectively call and talk with a person at any other sub or master station in the system. The privacy feature on the master and selected subs prevents monitoring by another master station. A call can be received, but communication back to the calling master will be heard only after the privacy button is disengaged.
Master stations can be wall or desk mounted. Sub stations are available in surface or flush mount styles, with or without privacy. Outdoor stations are available in surface or flush mount styles. Indoor and outdoor vandal proof stations are also available.
Features
Supports up to 6 total master, sub, or door stations
LED and tone to announce incoming calls
Push-to-talk at calling master station
Hands-free communication at responding station
Large variety of sub and door stations
Selective monitoring
Privacy feature prevents unauthorized monitoring
Voice and call tone volume controls
Selective door release
Specifications
Power Source : 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
Output
800mW @ 20Ω (reception)
500mW @ 20Ω (transmission)
Communication : Press-to-talk, release-to-listen at master station. Hands-free at responding station.
Talk Channel : 1 talkpath. Occupied LED when in use.
Wiring
5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
Upgrade your communication with the AIPHONE LEF-5, a versatile 5-channel master station that supports up to 6 stations. Enjoy hands-free conversation, selective calling, and privacy features, ensuring secure and efficient communication for your home or business. With easy installation and customizable configurations, stay connected effortlessly while enhancing your security.
