AJAX GLASS PROTECT

Name: AJAX GLASS PROTECT - Communica [Part No: AJAX GLASS PROTECT]
Brand: Ajax
SKU: AJAX GLASS PROTECT
Price: 1145 ZAR
Availability: OutOfStock

SKU: AJAX GLASS PROTECT

BRAND: Ajax

Sold Out
R 1,316.75_{(inc VAT)}
R 1,145.00_{(ex VAT)}

Collections: AJAX, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Door and Window Sensors

Wireless Indoor Glass Detector Upto 9m, Frequency:868.0~868.6MHz, 20x90mm , 30g

Wireless Indoor Glass Detector

Overview

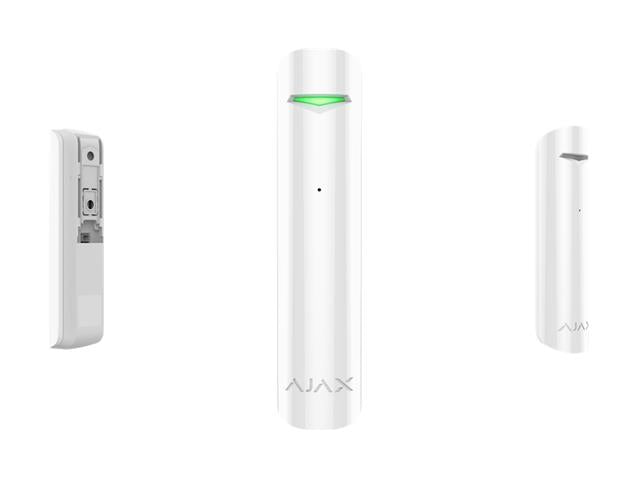

GlassProtect

A miniature wireless detector recognizing glass breaking from up to 9 meters. If intruders break a window, the system immediately notifies users and a security company. At the same time, a passing cars and barking dogs do not cause false alarms.

Principle of operation

Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling.

Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks.

Installation and set up

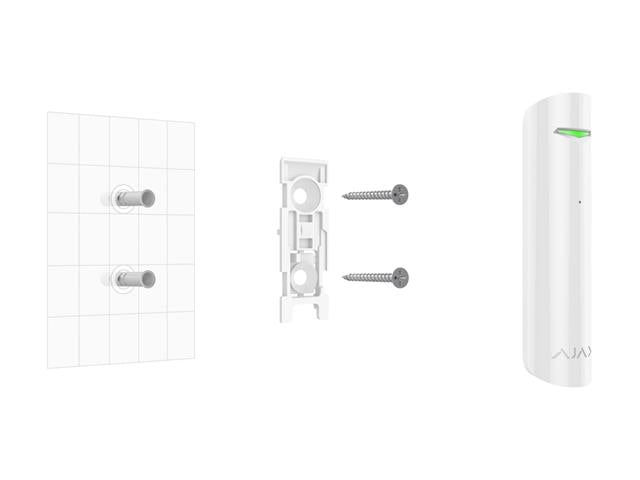

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Features

Operates up to 7 years without battery replacement
Ignores thunder, dogs barking and noise outside the window
Detects breakage at a distance of up to 9 m

Specifications

Classification : Surface sound radio channel security detector
Type of detector : Wireless
Installation method : Indoors
Compatibility : Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element : Electret microphone
Break detection distance : Up to 9 m
Alarm signal delivery time : 0.15 s
Sensitivity : Adjustable, 3 levels
Detection angle : 180°

Power supply

Battery: CR123A battery, 3 V
Battery life : Up to 7 years

Jeweller radio technology

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor : Available
Operating temperature range : From -10°С to +40°С
Permissible humidity : Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing : +

Dimensions

Diameter: 20 mm
Height: 90 mm
Weight : 30 g
Warranty : Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

GlassProtect glass break detector
SmartBracket mounting panel
battery (pre-installed)
External contact
Installation set
User's guide

Downloads

User manual - AJAX GLASS PROTECT

Additional Information

Device	Detector
Type	Wireless \| Indoor \| Glass
