Wireless Indoor Touch Keypad with Support for Encrypted Contactless Cards & Key Fobs, Two-Way Communication Between Devices, FREQ:868.0~ 868.6 MHz, Contactless Access: DESFire EV1, EV2, ISO14443-А (13,56 MHz), 165×113×20mm
Wireless Indoor Touch Keypad
Overview

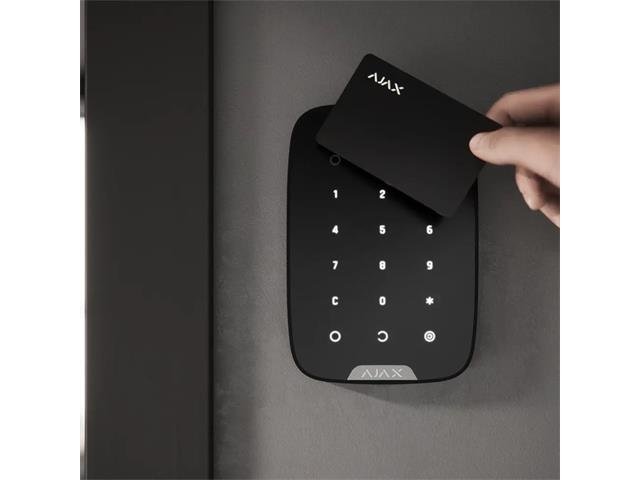

KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob.
Specifications
- Keypad type : Capacitive touch keypad
- Installation : Indoor only
- Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
- Personal passcodes : Yes
- Passcode guessing protection : Yes
- Duress code : Yes
- Contactless access : DESFire® EV1, EV2 ISO14443-А (13,56MHz)
- Power supply Batteries:
- 4 lithium AA (FR6)
- Voltage 1.5V
- Battery life: up to 4.5 years
- Temperature sensor : Available
- Jeweller radio technology
- Communication range with central unit — up to 1,700m
- Two-way communication between devices
- Operating frequencies — 868.0–868.6 MHz5
- Self-adjusting RF output power — up to 20 MW
- Block encryption with a dynamic key
- Ping period — 12–300 s
- Anti-sabotage
- Authentification
- Jamming detection
- Tamper notifications
- Operating temperature range : From -10°C to +40°C
- Operating humidity : Up to 75%
- Dimensions : 165 × 113 × 20 mm
- Weight : 267 g
- Certification : EN 50131, complies with the requirements of the technical regulations for radio equipment
- Warranty : 24 months
- Complete set
- KeyPad Plus
- SmartBracket mounting panel
- 4 АА batteries (pre-installed)
- Installation kit
- User guide
Downloads
Additional Information
| Device |
Keypad |
| Type |
Wireless | Indoor | Touch |
Elevate your security with the AJAX Keypad Plus BLK, a sleek, wireless indoor touch keypad designed for seamless access control. Enjoy encrypted contactless convenience with support for cards and key fobs, ensuring peace of mind and easy management of your security system. With its long battery life and robust two-way communication, this keypad is perfect for modern homes prioritizing safety and style.
