AJAX MOTION PROTECT

Name: AJAX MOTION PROTECT - Communica [Part No: AJAX MOTION PROTECT]
Brand: Ajax
SKU: AJAX MOTION PROTECT
Price: 1032 ZAR
Availability: InStock

SKU: AJAX MOTION PROTECT

BRAND: Ajax

In Stock
R 1,186.80_{(inc VAT)}
R 1,032.00_{(ex VAT)}

Collections: AJAX, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Motion Sensors, PIR Motion Sensor

Wireless Indoor Pet Immune Motion Detector Upto 20Kg, Recommended Installation Height:2.4m, Detection Angles: Horizontal~88.5° / Vertical: 80°, Upto 12m Detection, Frequeny:868.0~ 868.6MHz, 110×65×50mm, 86g

Pet Immune Motion Detector

Overview

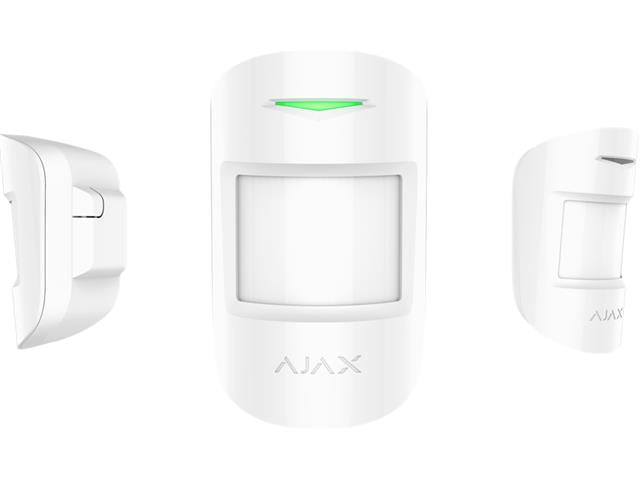

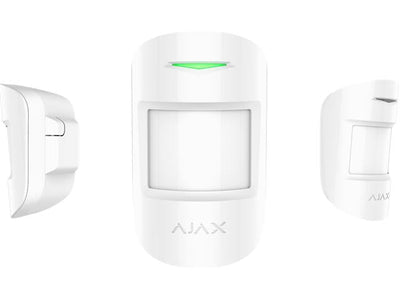

MotionProtect

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

Principle of operation

The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Installation and set up

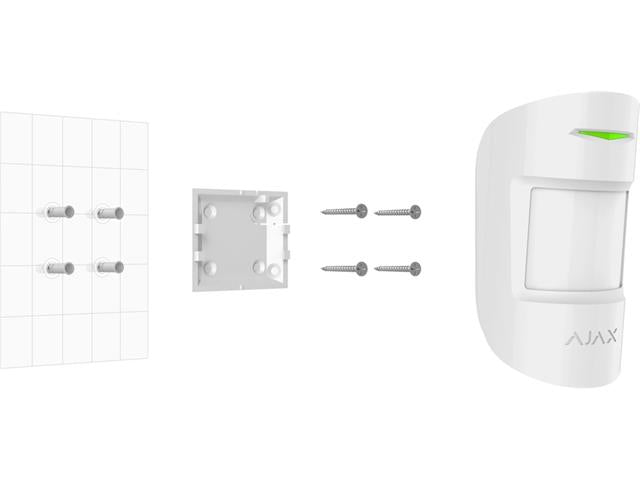

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Features

Operates up to 5 years without battery replacement
Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm
Accurately detects motion in heat conditions, even at a temperature of +40°С

Specifications

Classification : Electro-optical radio channel security detector
Type of detector : Wireless
Installation method : Indoors
Compatibility : Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element : PIR sensor
Alarm signal delivery time : 0.15 s
Motion detection distance ; Up to 12 m

Detection angles

Horizontal — 88.5°
Vertical — 80°

Time for motion detection : From 0.3 to 2 m/s
Sensitivity : Adjustable, 3 levels
Recommended installation height : 2.4 m

Pet immunity

Weight — up to 20 kg
Height — up to 50 cm

Power supply

Battery: CR123A battery, 3 V
Battery life : Up to 5 years

Jeweller radio technology

Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s

Temperature sensor : Available
Operating temperature range : From -10°С to +40°С
Permissible humidity : Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Tamper-resistant

Remote setting and testing : +
Dimensions : 110 × 65 × 50 mm
Weight : 86 g
Warranty : Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

MotionProtect motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User's guide

Downloads

User Manual - AJAX MOTION PROTECT

Additional Information

Device	Detector
Type	Pet Immune \| Motion
