Wireless Indoor Radio Signal Range Extender (can only be connected to a hub) Doesn't Support Motioncam, Alarm Signal Delivery Time:0.3s, Frequency:868.0~ 868.6MHz, 163×163×36mm, 330g

Radio Signal Range Extender

Overview

Security on a massive scale

ReX is the radio signal range extender that boosts the range of all Ajax security system devices and manages their communication with the hub. The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants. Connecting 5 ReXs to the security system extends its coverage to up to 35 km².

Security on a massive scale

ReX is the radio signal range extender that boosts the range of all Ajax security system devices and manages their communication with the hub. The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants. Connecting 5 ReXs to the security system extends its coverage to up to 35 km².

Intuitive connection and installation

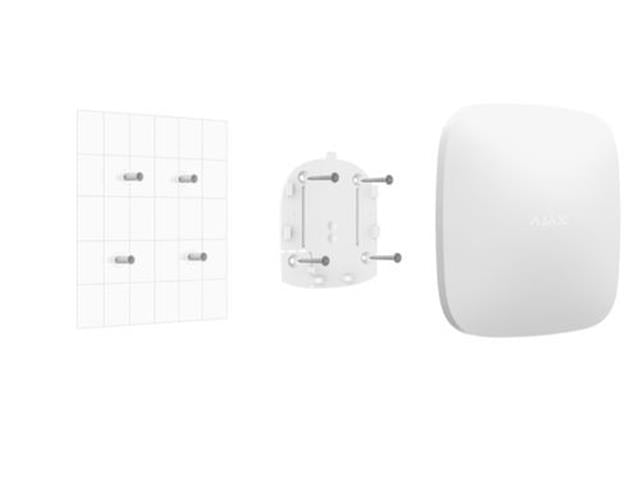

To connect ReX to the system, scan the QR code, name it, and switch it on. Then, select the devices which should operate via the range extender from the list. Proceed by installing ReX in a safe spot. No disassembling required. Just use the SmartBracket mount.

Features

Transmits alarms in 0.3 seconds
Communicates at a distance of up to 1800 m
Operates up to 35 hours on the back-up battery

Specifications

Classification : Radio channel range extender
Device type : Wireless
Installation method : Indoors

Compatibility

All Ajax hubs
Doesn’t support MotionCam

Alarm signal delivery time : 0.3 seconds

Maximum connected devices (in a system with one range extender)

Hub, Hub 2 — up to 99
Hub Plus — up to 149
Hub 2 Plus — up to 199

Max number of connected ReX per hub*

Hub — 1
Hub Plus/Hub 2/Hub 2 Plus — 5
ReX can only be directly connected to the hub. ReX cannot be connected to another ReX

Operating system : OS Malevich

Power supply

110-240 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX
Built-in back-up battery: Li-Ion 2 А·h
Up to 35 hours of offline operation

Jeweller radio technology

Communication range with detectors — up to 1,800 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping

Operating temperature range : From −10°С to +40°С
Permissible humidity : Up to 75%

Anti-sabotage

Protection against fraud
Jamming detection
Tamper-resistant

Dimensions : 163 × 163 × 36 mm
Weight : 330 g
Warranty : Within 24 months from the date of sale

Complete set

Intelligent radio signal range extender ReX
SmartBracket mounting panel
Power cable
Installation kit
Quick Start Guide

Downloads

User manual - AJAX REX

Additional Information

Device	Range Extender
Type	Radio Signal

Enhance your Ajax security system with the AJAX REX Wireless Indoor Radio Signal Range Extender. Boosting communication up to 1,800 meters, it allows for seamless, secure device placement across large areas, perfect for offices or detached buildings. Enjoy quick installation, reliable alarm delivery in just 0.3 seconds, and up to 35 hours of backup power, ensuring your property stays protected around the clock.
