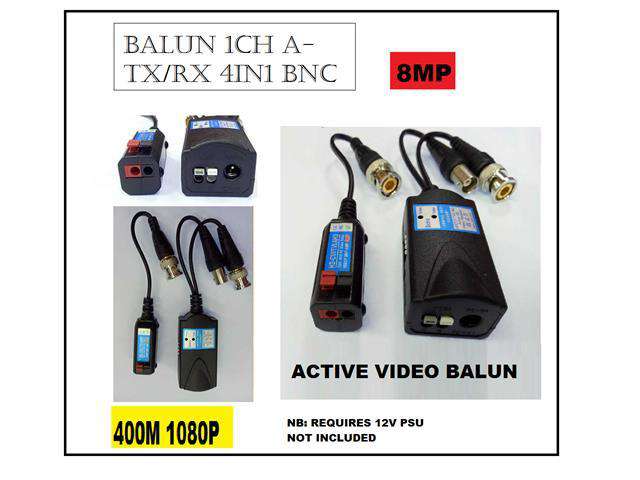

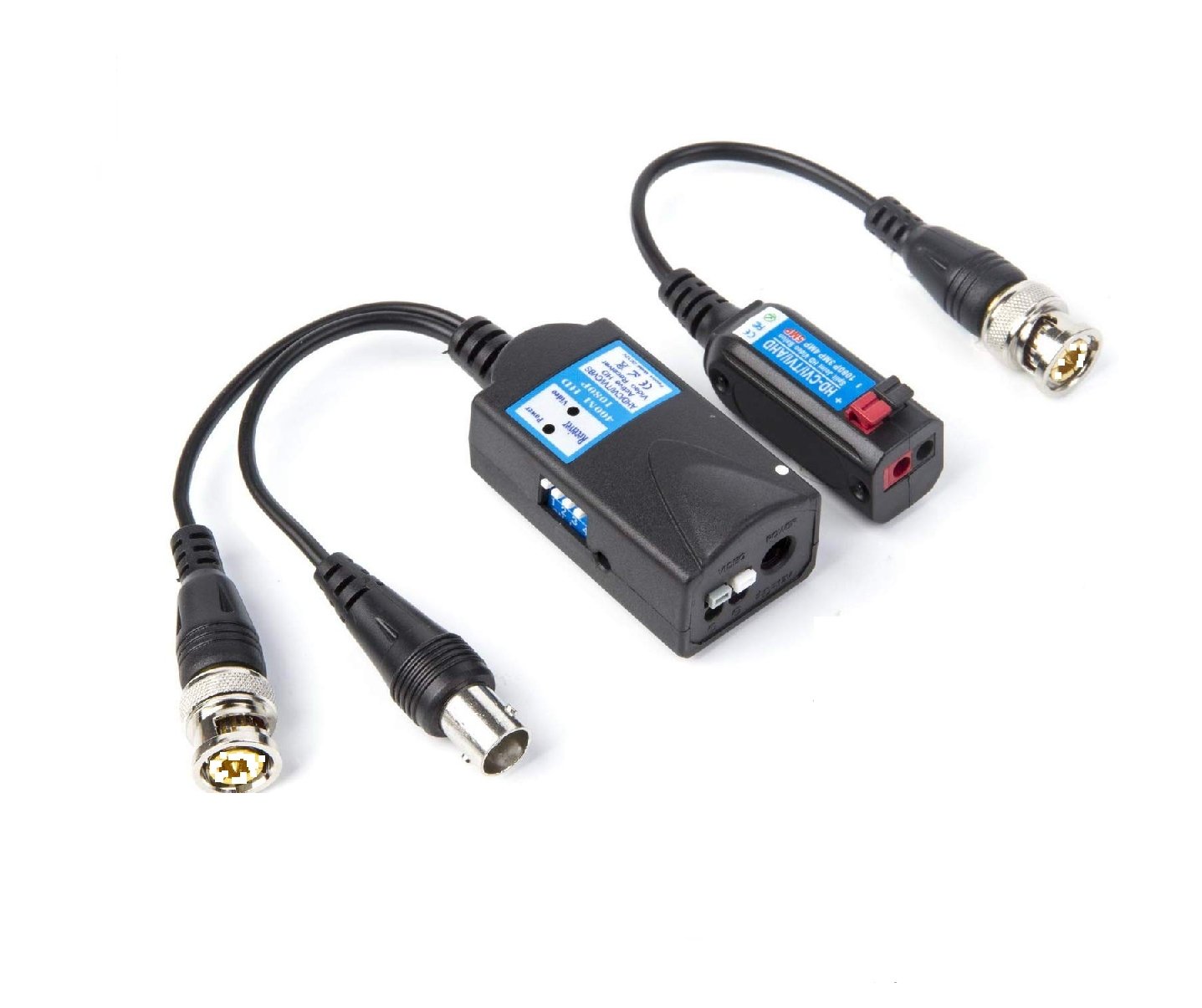

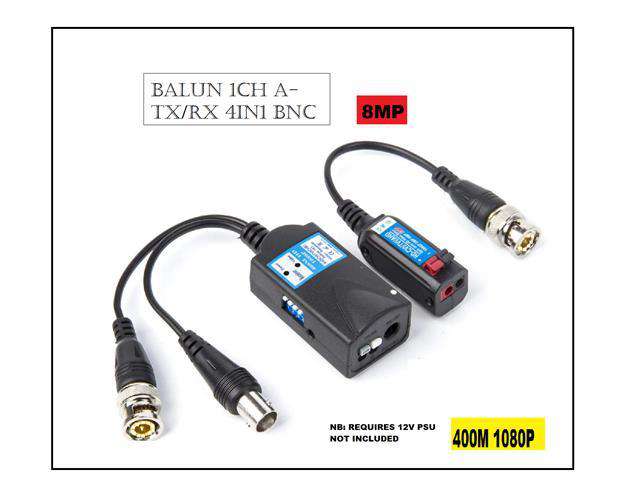

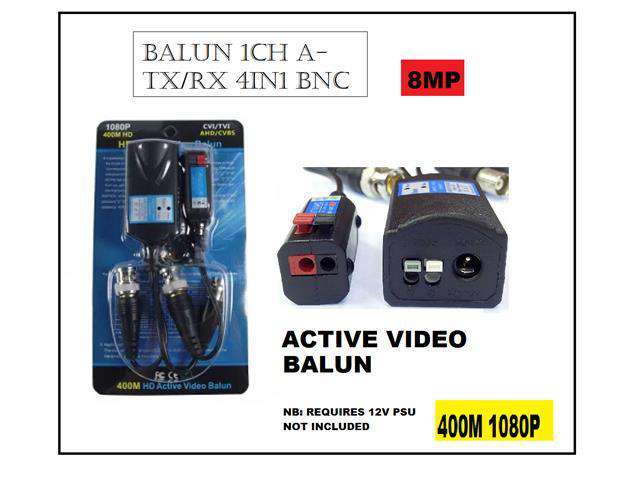

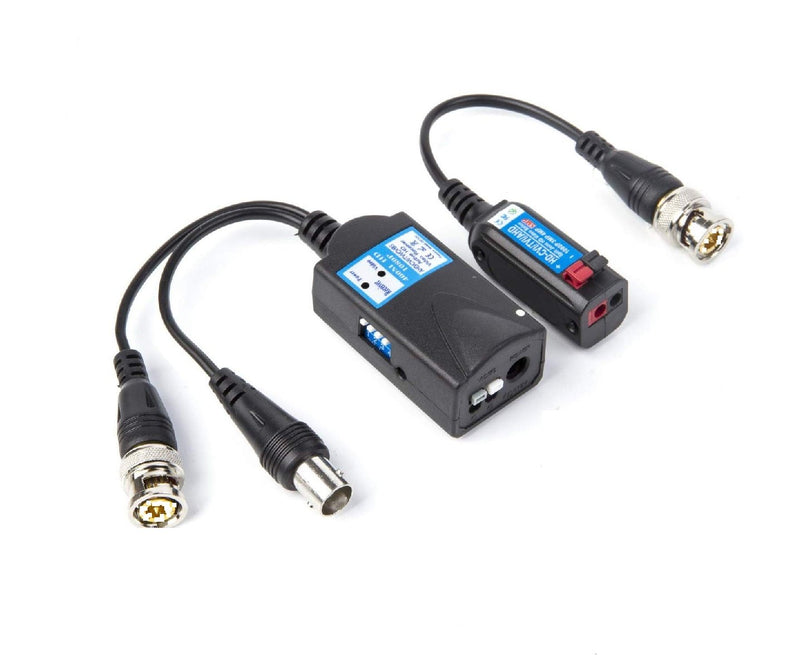

BALUN 1CH A-TX/RX 4IN1 BNC

Cable Standard:

Cable’s quality directly affect the video signal transmission quality. in order to achieve good quality signal transmission, recommend use standard cat 5e/6 or better utp cable.

Warm Tip:

The cable quality, could use “multimeter” check one pcs twist pair wire’s DC impedance. normally request dc impedance<18Ω/100m, that means < 54Ω/carton.

Dial Switch

• Dial Switch use for adjust contrast. Different compound mode makes different level of contrast.
• Level 1 (Lowest) : “1” “2” “3” “4” All The Tap Position Turn Up
• Level 2: “1” Turn Down, “2” “3” “4” Turn Up.
• Level 3: “1” “2” Turn Down, “3” “4” Turn Up.
• Level 4: “1” “2” “3” Turn Down, “4” Turn Up.
• Level 5 (Hightest): “1” “2” “3” “4” All The Tap Position Turn Down

Notice: HD CVI/TVI/AHD Cameras only have to use “1” Tap Position. (“2” “3” “4” can not use, Otherwise, the image will be abnormal), the max distance: 400m

• ignal Bandwidth: 0-80MHZ
• Common-mode Rejection Ratio(CMRR):60DB
• Cable Port: Pure Copper BNC Male, 75ΩImpedance: Press Terminal, 50Ωimpedance.
• Video Format: NTSC, PAL HD CVI/TVI/AHD/CVBS Video Signal
• LED Indication: Power-blue; Signal-green
• Power: <0.15W
• Transient Overvoltage Protection: 2KV
• Operation Temp: -10℃-70℃
• Storage Temp: -40℃-80℃
• Case Material: ABS Plastic
• Product Size: 55x28.6x20mm
