BDD BALUN 8CH 8MP P-TXRX BNC PR

Name: BDD BALUN 8CH 8MP P-TXRX BNC PR - Communica [Part No: BDD BALUN 8CH 8MP P-TXRX BNC PR]
Brand: Communica
SKU: BDD BALUN 8CH 8MP P-TXRX BNC PR
Price: 690 ZAR
Availability: InStock

SKU: BDD BALUN 8CH 8MP P-TXRX BNC PR

BRAND: Communica

In Stock
R 793.50_{(inc VAT)}
R 690.00_{(ex VAT)}

Collections: Circuit Protection, Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: Video Balun

8 Channel Passive Receiver /Transmitter Balun, Capable of Transmitting 8,0 Mega Pixel Quality. Range of up to 330m. Sold as pair

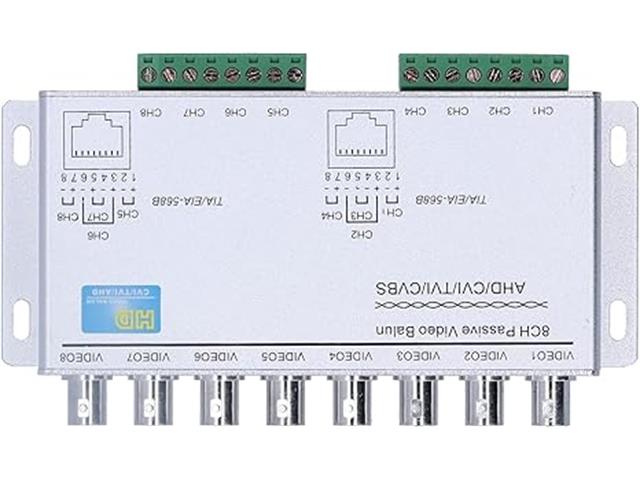

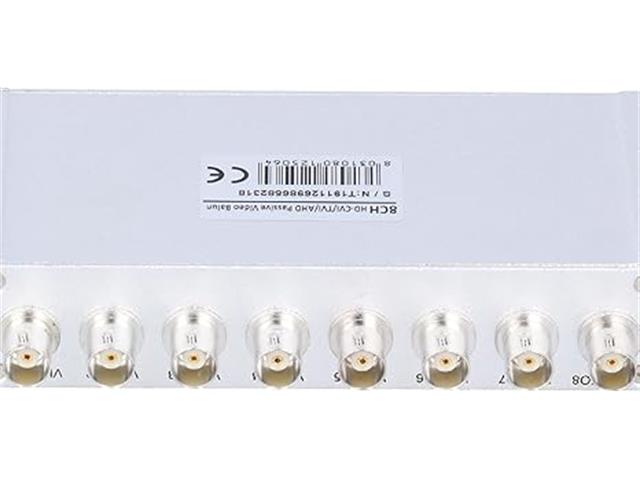

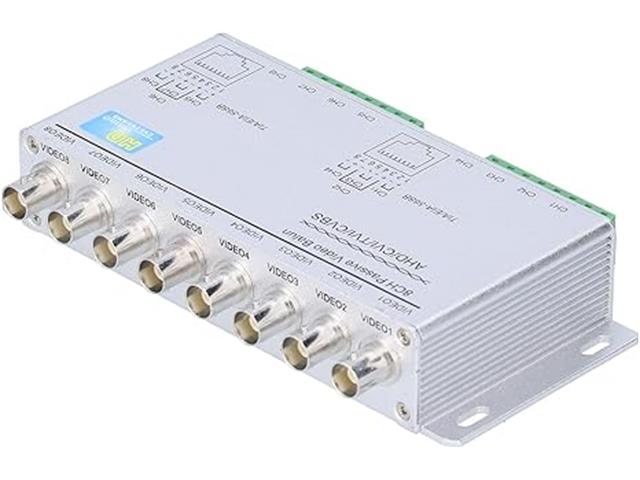

8 Channel Passive Receiver /Transmitter Balun

Overview

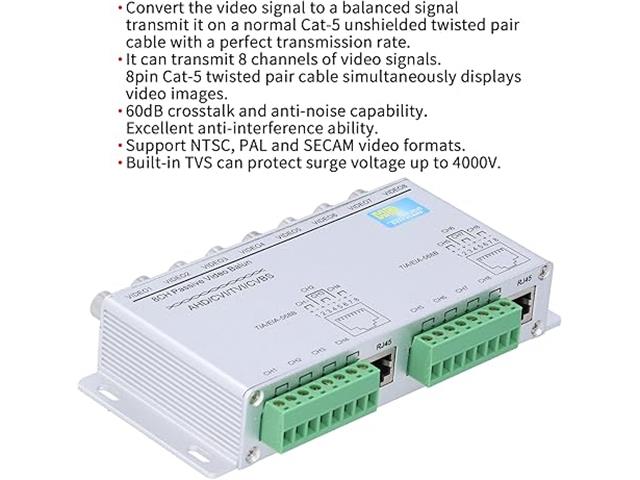

The HD video balun is used to convert a video signal into a balanced signal to be transmitted on a common Cat-5 unshielded twisted pair wire. This can be applied in occasions such as video monitoring and video meeting and can transmit channels of video image simultaneously on an 8 core cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity

Feature(s)

Compatible with all HD-CVI, HD-TVI, HD-AHD.
Up to 450m for 720P CVI Cameras.
Up to 250m for 1080P CVI Cameras.
Up to 250m for 720P/1080p TVI Cameras.
Up to 320m for 720P AHD camera.
Up to 250m for 1080P AHD camera.
NTSC, PAL, and SECAM video formats.
No power required.
60dB cross talk and noise immunity.
Built-in transient suppression protection.
Surge protection 4KV, ESD: 8KV.
Frequency response: DC to 60MHZ.
Attenuation: 0.5dB type.
CMRR: 60dB.
Impedance: BNC: 75ohms, RJ45: 100ohms.

Additional Information

Device	Balun
Type	8 Channel \| Passive Receiver /Transmiter
