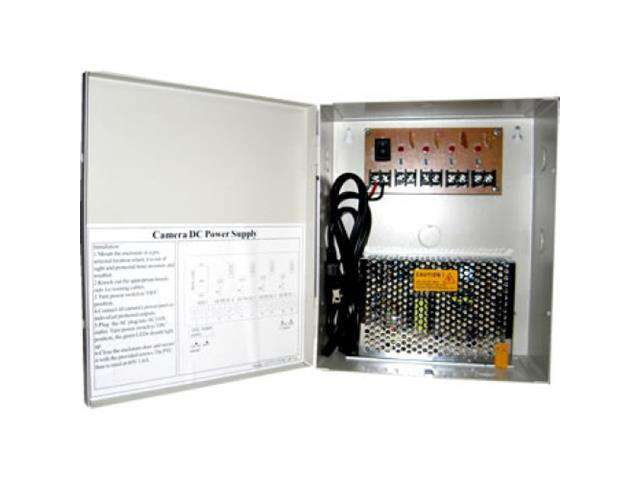

CCTV POWERBOX 4C5A

General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working. Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control , etc.

• Certification : CE/ROHS
• Input Voltage : AC 100-240V
• Input Voltage Frequency : 50/60Hz
• Output Voltage : DC 12V +/-5%
• Total Output Current : 5A
• Total Outputs : 4
• Fuse Type : PTC (Resetable)
• Fuse Rating : 2A
• Packing Dimension : 250 x 215 x 94 (mm)
• Net Weight : 2.2Kg
