CCTV SUR PROT 3 IN 1

Name: CCTV SUR PROT 3 IN 1 - Communica [Part No: CCTV SUR PROT 3 IN 1]
Brand: Communica
SKU: CCTV SUR PROT 3 IN 1
Price: 280.70 ZAR
Availability: InStock

SKU: CCTV SUR PROT 3 IN 1

BRAND: Communica

R 322.81_{(inc VAT)}
R 280.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: Surge Protection

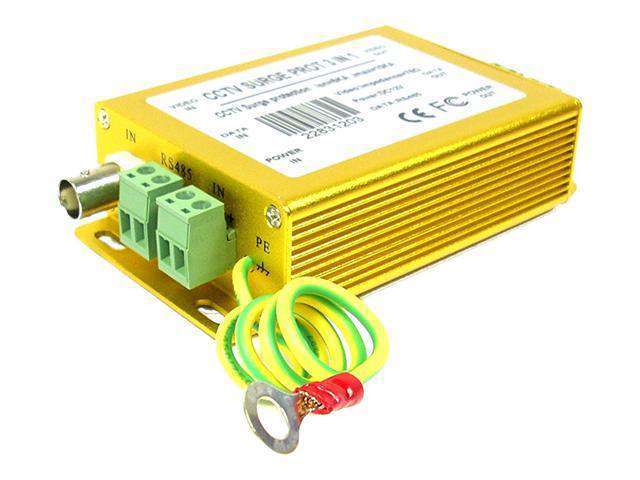

CCTV Surge Protection Device 12VDC • 3 in 1 Video, Data, Power

Overview

It applies to the overvoltage protection of the signal in the monitoring system with the integration of power, control signal and the video signal, to keep it from the damage caused by induced overvoltage, switching overvoltage and electrostatic discharge, etc.

Features

Large Current Flow Capacity
Multilevel Protection
Quick Response
Small Insertion Loss

Specification

Function Protection : Video, Data, Power
Insertion loss : 0.3dB
Response time : <0.5ns
Working Temperature Range : -60~+95°C
Max. Discharge Current : 10KA
Overall Dimension : 102x64x28mm
Continuous Working Voltage : 6V
Limited Voltage : 8.8V
Max. Transmission Rate : 10MHz
Continuous Working Voltage : 12V
Limited Voltage : 18V
Continuous Working Voltage : 5V
Limited Voltage : 8.8V
Maximum Transmission Rate : 20MHz

Protect your CCTV system with the CCTV Surge Protection Device 3 in 1, designed to safeguard video, data, and power signals from damaging overvoltages. With a rapid response time and exceptional current flow capacity, this compact device ensures your security system remains operational under any conditions. Trust in multilevel protection to keep your surveillance investment safe and secure.
