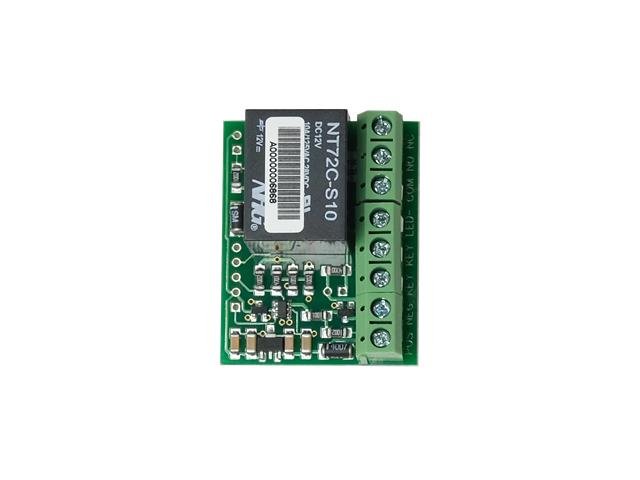

CEM 1018 STEPPER RELAY PCB

Name: CEM 1018 STEPPER RELAY PCB - Communica [Part No: CEM 1018 STEPPER RELAY PCB]
Brand: Communica
SKU: CEM 1018 STEPPER RELAY PCB
Price: 150 ZAR
Availability: OutOfStock

SKU: CEM 1018 STEPPER RELAY PCB

BRAND: Communica

Sold Out
R 172.50_{(inc VAT)}
R 150.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Alarm Accessories

Flip Flop stepper Relay PCB 12VDC

Flip Flop stepper Relay

Overview

Wiring Diagram

+12v DC
-12v DC
KEY SW COM
KEY SW N.O.
LED - output
Com relay contact
N.O. relay contact
N.C. relay contact

Installation
• Connect +12v DC, key switch and LED wires.
• Activate key switch, LED and relay turn on, activate again and both turn off.

Specifications

• Microprocessor controlled.
• 12v DC operation.
• Positive trigger input, pulse type.
• Negative LED output indicating state of relay.
• Potential free relay contacts, current rating 5A @ 12v.
• Current draw 10mA @ 12v DC.
• Physical size: 45mm x 41mm.

Downloads

Data Sheet

Additional Information

Type	PCB \| 12VDC
