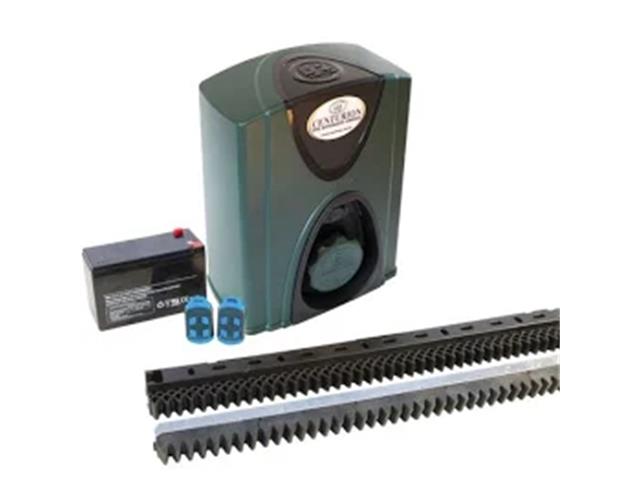

CEN GATE MOTOR D2T-KIT

SKU: CEN GATE MOTOR D2T-KIT

BRAND: Centurion


Gate Motor D2T -Turbo 250KG- BATT/2X 2M Steelrack/1X Built in REC/2 X 4-Button TX

Overview


Features



  • Turbo speed for greater security and convenience
  • Very easy to install and set up, saving you time and money
  • Reliable battery backup
  • Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power
  • Onboard multichannel CENTURION receiver
  • Multiple Modes of Operation
  • Adaptive Collision Sensing
  • Modular components clip together for easy maintenance
  • Lockable, easy Manual Override
  • Now with robust steel pinion – can be easily retro-fitted and ensures reliable operation

Specification



D2 TURBO TECHNICAL DATA:
 Input voltage 1 90V– 240V AC ±10%, 50Hz
Motor voltage 12V DC
Motor power supply 4 Battery-driven (standard capacity - 12V 5Ah)
Current consumption (mains) Intergral with controller 1A @ 13.7V +/- 1%
Current consumption (motor at rated load) 8/12A
Current consumption (quiescent load) 95mA
Operator push force:
Starting 18kgf
Rated 8kgf
Gate mass – maximum 250kg
Gate length - maximum 20m
Gate speed - m/min 6 22 - 26m/min
Gate speed - mm/sec 367 - 433mm/sec
Drive Pinion 17T Module 4
Maximum daily cycle 10 cycles/day
Operations in standby with standard battery 4, 5:
Half day 60 cycles
Full day 40 cycles
Collision sensing Electronic
Operating temperature -15°C to +50°C
Degree of protection IP54
Controller incorporated D2 Controller_H
Onboard receiver type
NOVA code-hopping onboard, multichannel
Receiver frequency 433.92MHz
Receiver code storage capacity 32 transmitter buttons
Mass of unit packed 5kg
Packaging dimensions Length: 255mm x Width: 188mm x Height: 333mm
