CEN SD04 SMART (T10) SECT KIT

Name: CEN SD04 SMART (T10) SECT KIT - Communica [Part No: CEN SD04 SMART (T10) SECT KIT]
Brand: Centurion
SKU: CEN SD04 SMART (T10) SECT KIT
Price: 2640 ZAR
Availability: OutOfStock
Rating: 5.00 (3 reviews)

SKU: CEN SD04 SMART (T10) SECT KIT

BRAND: Centurion

Sold Out
R 3,036.00_{(inc VAT)}
R 2,640.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Garage Door Motors

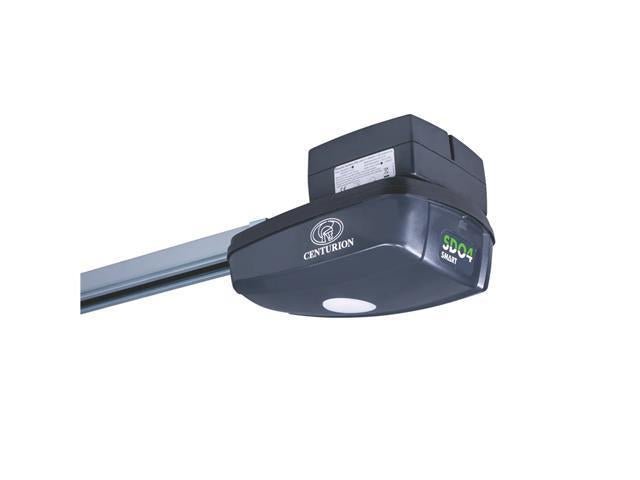

CENTURION SD04 Smart (T10) Sectional Garage Door Motor Kit, Includes : (2 X 4 Button Remotes, 2X12V3, 4A Batteries, 1 X Single Piece Track 3M SECT/D Belt)

Sectional Garage Door Motor Kit

Specifications

Technical Data : T10
Input voltage : 230V AC +/-10% @ 50/60Hz1
Motor voltage : 24V DC
Motor power supply - rated : 80W DC
Motor supply Battery supply : 2 x 3.4Ah 12V DC
Maximum door width : 6.5 metres
Maximum door area : 12 Square meters
Maximum push/pull force : 40kgf
Maximum lifting capacity : 1000N
Operations in standby mode : Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
Maximum operator travel speed : 9m/min
Door travel adjustment : Physical end-stops (Automatic limit set)
Safety obstruction force system : Built-in menu
Light LED : 2W
Autoclose : Menu Selectable
Infrared safety beams : Menu Selctable (Optional but recommended)
Onboard receiver type : Code-hopping single channel
Receiver code storage capacity : 20x 4-Button Transmitters
Receiver frequency : 433.92Mhz

Downloads

Datasheet - CEN SD04 SMART (T10) SECT KIT

Additional Information

Device	Motor Kit
Type	Sectional \| Garage Door

Upgrade your garage with the CEN SD04 Smart (T10) Sectional Garage Door Motor Kit. Featuring a powerful 24V motor, this kit ensures smooth operation and maximum convenience, complete with two remotes for effortless access. With safety features like infrared beams and customizable autoclose options, enjoy peace of mind while enhancing your home's functionality. Perfect for doors up to 6.5 meters wide, this motor kit combines reliability and efficiency for your garage needs.
