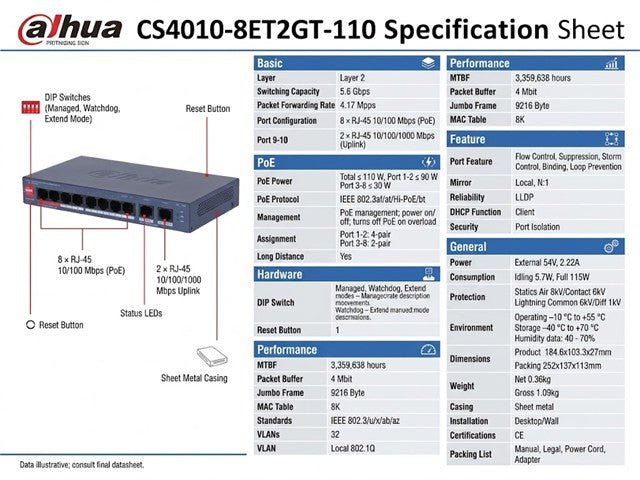

Specification
|
|
Basic
|
|
Layer
|
Layer 2
|
|
Switching Capacity
|
5.6 Gbps
|
|
Packet Forwarding Rate
|
4.17 Mpps
|
|
Description of Function Slots
|
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
|
|
Operating Temperature
|
–10 °C to +55 °C (+14 °F to +131 °F)
|
|
Operating Humidity
|
10%–90% (RH), non-condensing
|
|
Storage Temperature
|
–40 °C to +70 °C (–40 °F to +158 °F)
|
|
Storage Humidity
|
5%–95% (RH), non-condensing
|
|
Power Supply
|
External Power Adapter (54 V, 2.22 A)
|
|
Power Consumption
|
Idling: 5.7 W
Full load: 115 W
|
|
Statics Protection
|
Air discharge: 8 kV
Contact discharge: 6 kV
|
|
Lightning Protection
|
Common mode: 6 kV
Differential mode: 1 kV
|
|
Net Weight
|
0.36 kg (0.79 lb)
|
|
Gross Weight
|
1.09 kg (2.03 lb)
|
|
Product Dimensions
|
184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
|
|
Packaging Dimensions
|
252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
|
|
Casing Material
|
Sheet metal
|
|
Installation
|
Desktop mount; wall mount
|
|
Certifications
|
CE
|
|
PoE
|
|
PoE
|
Yes
|
|
PoE Power
|
Port 3-8≤30 W, port 1-2≤90 W, total≤110 W
|
|
PoE Protocol
|
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
|
|
PoE Power Consumption Management
|
PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
|
|
PoE Pin Assignment
|
Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-)
Port 3-8: 1,2, (V+),3,6, (V-)
|
|
Long Distance PoE Transmission
|
Yes
|
|
Hardware
|
|
DIP Switch
|
Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
|
|
Reset Button
|
1
|
|
Performance
|
|
MTBF
|
3,359,638 hours
|
|
Packet Buffer Size
|
4 Mbit
|
|
Jumbo Frame
|
9216 Byte
|
|
MAC Table Size
|
8K
|
|
Communication Standard
|
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az
|
|
VLAN Number
|
32
|
|
Feature
|
|
VLAN Function
|
IEEE 802.1Q VLAN
|
|
Port Feature
|
IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
|
|
Mirror
|
Local Port Mirroring
N:1 Mirroring
|
|
Reliability
|
LLDP
|
|
DHCP Function
|
DHCP Client
|
|
Security
|
Port Isolation
|
|
Equipment Management
|
Web Management
Cloud Management
Logs
Fault Alarm
|
|
General
|
|
Packing List
|
1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
|
