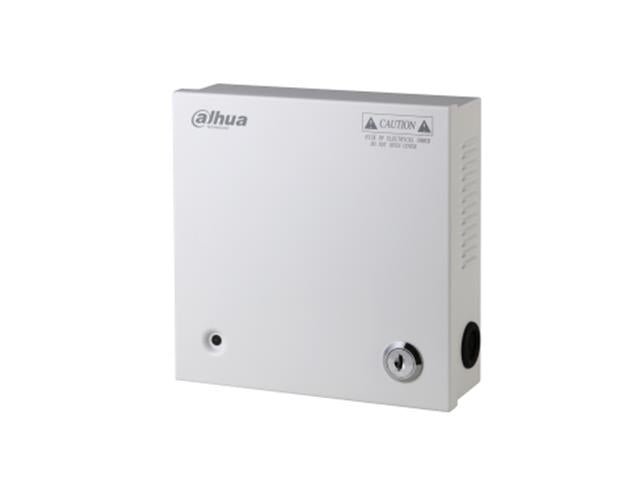

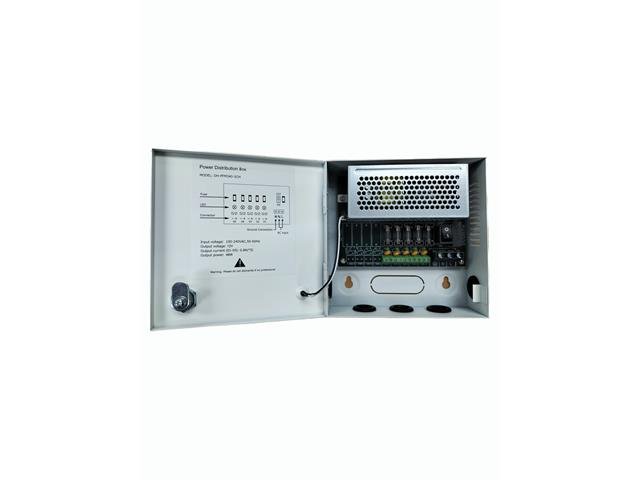

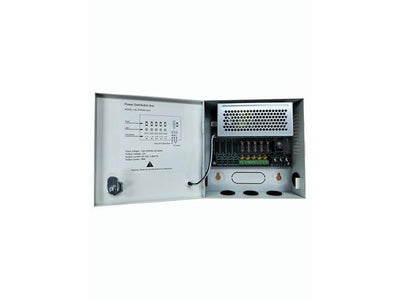

• 5 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access;
• Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation;
• High quality and reliability: pass 100% quality examination and 3 months high temperature aging test;
• With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability;
• Professional wall-mounted installation with reserved outlet holes, convenient and flexible.

Electrical Specification

• Model : DH-PFM340-5CH
• Input Voltage Range : AC90~264V
• Outputs : 5 x 12VDC (-3%~+7%) outputs
• Max. output : 4 A
• Output Protection : 5 replacement fuses, max. per output 2.5A
• Efficiency : 84%
• No Load Power Consumption : <0.5W
• Internal ON/OFF Power Switch : Yes
• Individual LED Output Indicator : Yes

Protection/Environmental

• Surge Protected

  • Line to ground: 4000V
  • Line to line: 2000V
• ESD

  • Contact discharge: 6000V
  • Air discharge: 8000V
• Working Temperature : -20°C~+45°C(-4°F~+113°F)
• Working Humidity : <90% RH

Physical Properties

• Weight : 0.85kg(1.87lb)
• Dimension(LxWxH) : 165mmx165mmx50mm(6.5”x6.5”x1.97”)
• Installation : Wall mount
• Color : White

1. Datasheet - DHA PFM340-5CH
