DHA PFM344D - 8CH - EN - CCTV Products & Accessories - 6923172585714

DHA PFM344D-8CH-EN

Name: DHA PFM344D-8CH-EN - Communica [Part No: DHA PFM344D-8CH-EN]
Brand: Dahua
SKU: DHA PFM344D-8CH-EN
Price: 169.57 ZAR
Availability: InStock

SKU: DHA PFM344D-8CH-EN

BRAND: Dahua

In Stock
R 195.01_{(inc VAT)}
R 169.57_{(ex VAT)}

Collections: Dahua, New Arrivals, Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: CCTV Accessories, New

Dahua 8 Channel 60W Switching Power Supply 12V 1A Per Channel, I/P:100~240VAC, Over Current & Over Voltage Protection, 140.1x94.5x34.2mm, 0.35kg

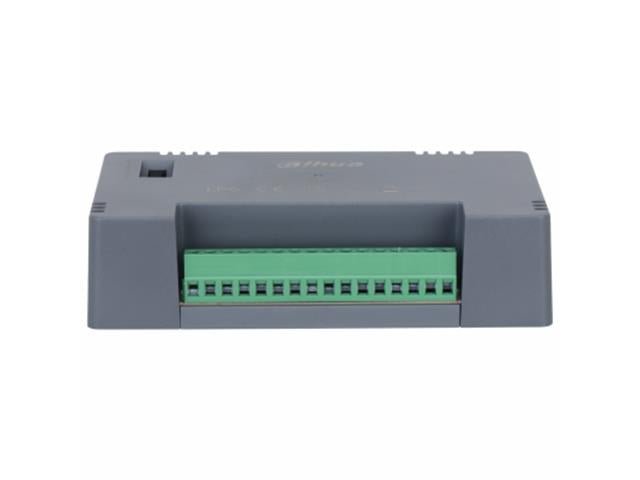

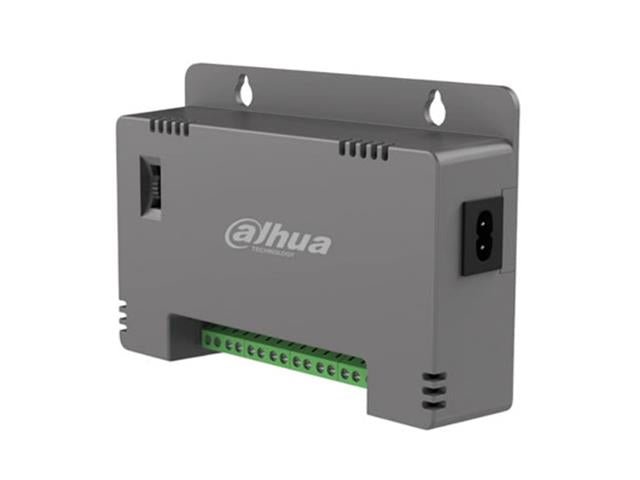

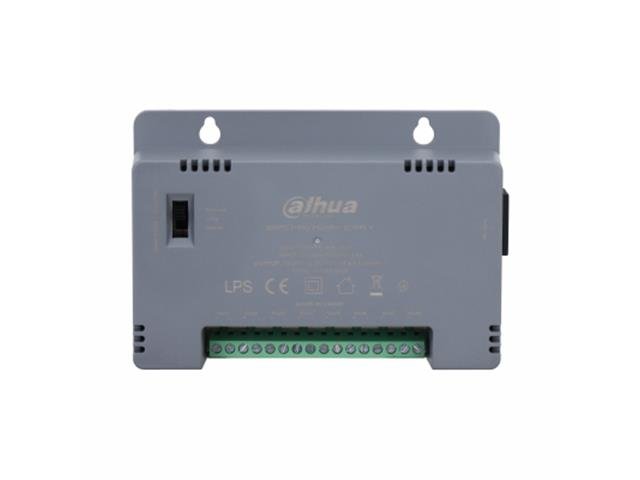

8 Channel 60W Switching Power Supply

Feature

Outputs through 8 channels and can supply to multiple devices at the same time.
The output voltage can be adjusted to 3 levels, making it easily adapt to various types of devices.
Easy to install, the device supports wall mount installation.
Designed with protection against overcurrent, overvoltage, and short circuits.
Surge protection: common mode: ±4 kV, differential mode: ±2 kV.
V-0 fireproof.
CE certification.
Efficiency Level: VI.

Specifications

Function
Input Voltage	100 VAC240 VAC
Output Voltage	Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
Rated Output Current	Normal: 5 A Long: 4.5 A Ex-Long: 4 A
Rated Power	Output power: 12 W (for one channel) Total power: 60 W
Power Consumption In Idle	0.21 W
Efficiency	88%
Port
Input Port	2-core female seat C8, with European standard cable
Output Plug	8 channel output terminal
Protection
Types of Protection	Overcurrent protection, short circuit protection and overvoltage protection
Surge Protection Grade	Common mode: 4 kV Differentiate mode: 2 kV
Statics Protection	Air discharge: 8 kV Contact discharge: 6 kV
Structure
Installation	Wall mount
Product Dimensions	140.1 mm 94.5 mm 34.2 mm (5.52"" 3.72"" 1.35"") (L W H)
Appearance Color	Gray
Net Weight	0.27 kg (0.60 lb)
Gross Weight	0.35 kg (0.77 lb)
Packaging Dimensions	143 mm 41 mm 144 mm (5.63"" 1.61"" 5.67"") (L W H)
Input Cable Length	1000 mm (39.37"")
Environment
Operating Temperature	0 C to +40 C (+32 F to +104 F)
Operating Humidity	10%90% (RH)
Storage Temperature	40 C to +80 C (40 F to +176 F)
Storage Humidity	5%95% (RH)
Certifications
Certifications	CE

Downloads

Datasheet - DHA PFM344D-8CH-EN

Additional Information

Device	Power Supply
Type	8 Channel \| 60W \| Switching
