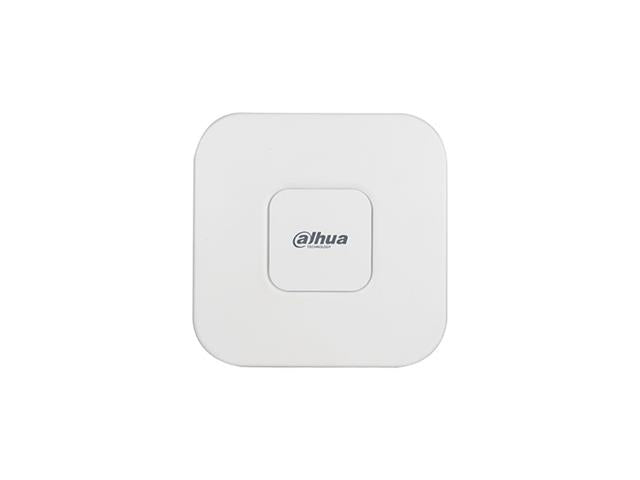

DAHUA Indoor Wireless 2.4Ghz 300Mbs Video Transmission Device (AP) MAX:8W , WPA-PSK/WPA2/CCMP(AES)/TKIP , Access Point/Client/WDS AP/WDS Client , Omni-Directional , IEEE802.11 b/g/n , 150m , IP41
2.4Ghz 300Mbs Video Transmission Device
Feature(s)
- The best coverage: 0-150m(open);
- PoE power supply, which supports international standard 802.3at and lets power supply be convenient and reliable;
- Support Web page and AC remote operations management and make the installation and maintenance be more convenient;
- Support SNMP v1/v2c/v3 network management protocol, adapt to all kinds of general network management platform, and make the equipment management be more convenient;
- Support device auto reboot function;
- Support double firmware redundancy backup and make the maintenance operation be more safe and reliable;
- Use the wireless multimedia optimization shaping technology, which ensures the stability of the video and flow transmission.
Specifications
Wireless Features
- Wireless Standard: IEEE802.11 b/g/n
- Working Frequency: 2412~2472MHz(extended range: 2312~2732MHz)
- Wireless Speed: 300Mbps
- Modulation Mode: OFDM
- Antenna: Internal antenna gain 3dBi
- Output Power: 27dBm
- Receiving Sensitivity: 11b: -97dBm@ 1Mbps;
11g: -94dBm@6Mbps;
11n: -72dBm@MCS7
- Transmission Distance: 150m
- Wireless Direction Angle: Omni-directional
Hardware
- Power1*PoE RJ45(IN: 220V, OUT:48V/0.5A), DC 12V
- Power Consumption: Max. 8W
- Ethernet Port: 1*LAN RJ45(Gigabit)
- Working Temperature: -30°C~+60°C
- Storage Temperature: -40°C~+80°C
- Working Humidity: 5%~95%RH( no condensation)
- Equipment Dimension 150mm×150mm×42mm
- Equipment Weight: 0.5Kg
- Protection Level: IP41
Software
- Encryption Type: WPA-PSK/WPA2/CCMP(AES)/TKIP
- Network Mode: Route/Network Bridge
- Working Mode: Access Point/Client/WDS AP/WDS client
- Security Mechanism: IP/MAC address filtering, hide network name and etc.
- Network Protocol: TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
- TDMA Enhancement: Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance)
- Auto ACK Timing Adjustment: Support(Auto optimize parameter within long-distance communication and make the performance optimal)
- Management and Log: NTP, Syslog, Telnet, AC, SNMP
- Webpage Configuration Management: Support webpage configuration, AC remote management and SNMP management
- Firmware Update: Support Firmware webpage update and AC remote upgrade
- Bandwidth Flexible Configuration: 20/40MHz
Downloads
Additional Information
| Device |
Transmission Device |
| Type |
2.4Ghz | 300Mbs | Video |
