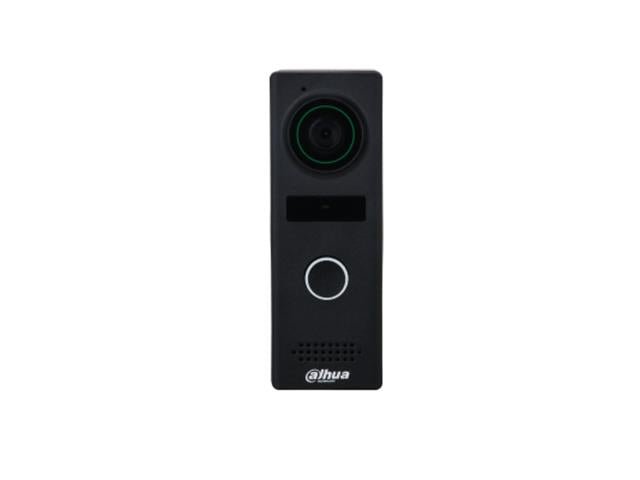

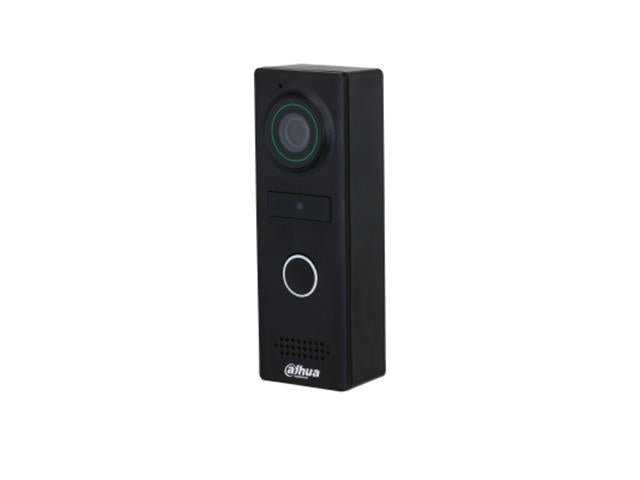

Dahua Analog Door Station 1/4" 1.3MP CMOS, DWDR, Audio I/P:1CH to the Microphone, Pickup Distance 0.5m, Aduio O/P:1 Indicator Light, Green: Power on, ICR Auto Switch, 131.45x46.00×33.80mm, IP66
1/4" 1.3MP CMOS Analog Door Station
Features
- Video intercom function: Unlock, voice call, video call and volume
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
- Mechanical button
- Metallic appearance
- IK07/IP66
Specifications
|
System
|
|
Button Type
|
Mechanical
|
|
Basic
|
|
Camera
|
1/4" 1.3 MP CMOS
|
|
Field of View
|
Horizontal: 70°
Vertical: 40°
|
|
WDR
|
DWDR
|
|
Illuminator Type
|
Auto IR
|
|
Day/Night
|
ICR auto switch
|
|
Audio Input
|
1 channel to the microphone; pickup distance 0.5 m
|
|
Audio Output
|
1 channel to the speaker
|
|
Indicator Light
|
1 indicator light; Green: Power on
|
|
Function
|
|
Communication Method
|
Analog
|
|
Unlock Mode
|
Remote unlock
|
|
Performance
|
|
Casing
|
ADC12
|
|
Port
|
|
Unlock Button
|
1
|
|
Door Status Detection
|
1
|
|
General
|
|
Color
|
Black
|
|
Power Supply
|
Powered by indoor monitor
|
|
Installation
|
Surface mount
|
|
Certifications
|
CE/FCC
|
|
Accessory
|
Rain cover (included)
|
|
Dimensions
|
131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")
|
|
Protection Grade
|
IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is
recommended. For details, see the quick start
guide.)
|
|
Operating Temperature
|
-30°C to +60°C (-22°F to +140°F)
|
|
Operating Humidity
|
10%RH–95%RH
|
|
Power Consumption
|
≤ 1W (standby)
≤ 3W (working)
|
|
Net Weight
|
0.18 kg (0.40 lb)
|
|
Gross Weight
|
0.40 kg (0.84 lb)
|
Downloads
Additional Information
| Device |
Door Station |
| Type |
1/4" | 1.3MP | CMOS | Analog |
Enhance your home's security with the DHA VTO1000JM Analog Door Station. Featuring a 1.3MP CMOS camera, DWDR technology, and a robust IP66 rating, this stylish door station ensures clear video and audio communication. Easily unlock your door remotely while enjoying multiple bell sounds and reliable performance in any weather. Keep your home safe and connected with this essential intercom solution.
