• Support P2P, allowing easier home applications
• 1080P cameras input and 1080N recording
• All channel synchronous real-time playback
• H.265+/H.265 dual-stream video compression
• HDMI/VGA simultaneous video output
• Multiple network monitoring: web-browser, smart phone/tablet APP

XVR System

• Main Processor : Embedded Processor
• Operating System : Embedded LINUX

Video and Audio

• Video Input  : 4 Channel, BNC
• IP Camera Input : 4+1, each channel up to 1080P
• Video Output : 1 HDMI & 1 VGA, up to 1080P
• Multi-screen Display
  • When IP extension mode not enabled:1/4
  • When IP extension mode enabled:1/4/6
• Audio In/Out : 1/1, RCA
• Two-way Talk : Reuse audio in/out, RCA

Recording

• Video Compression : H.265+/H.265/H.264+/H.264
• Resolution : 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
• Record Rate
  • Main Stream:

    • All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/
    • QCIF(1~25/30fps)
  • Sub stream:

    • CIF/QCIF (1~15fps)
• Video Bit Rate : 32Kbps ~ 4096Kbps Per Channel
• Record Mode
  • Manual, Schedule (General, Continuous), MD (Video detection:
  • Motion Detection, Video Loss, Tampering), Alarm, Stop

Network

• Interface : 1 RJ-45 Port (100M)
  Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,
  DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search
  (Supports Dahua IP camera, DVR, NVS, etc.)
• Max. User Access : 128 users
• Smart Phone : iPhone, iPad, Android

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Playback and Backup

• Playback : 1/4
• Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
• Playback Function
  • Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
  • Previous File, Next Camera, Previous Camera, Full Screen,
  • Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode : USB Device/Network

Storage

• Internal HDD : 1 SATA Port, up to 6TB capacity

Auxiliary Interface

• USB : 2 USB 2.0

General

• Power Supply : DC12V/1.5A (<10W)
• Dimensions : Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
• Operating Conditions : -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
• Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Camera

• Image Sensor : 1/2.7" CMOS
• Effective Pixels : 1920(H)×1080(V), 2MP
• Scanning System : Progressive
• Electronic Shutter Speed
  • PAL: 1/25~1/100000s
  • NTSC: 1/30~1/100000s
• Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
• S/N Ratio : More than 65dB
• IR Distance : Up to 20m (66feet)
• IR On/Off Control : Auto / Manual

Lens

• Lens Type : Fixed lens / Fixed iris
• Mount Type : Board-in
• Focal Length : 3.6mm
• Max Aperture : F1.85
• Angle of View : H: 93°
• Focus Control : N/A
• Close Focus Distance
  • 800mm
  • 31.50''

Pan / Tilt / Rotation

• Pan/Tilt/Rotation
  • Pan: 0° ~ 360°
  • Tilt: 0° ~ 90°
  • Rotation: 0° ~ 360°

Video

• Resolution:  1080P (1920×1080)
• Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
• Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual

General

• Casing : Plastic
• Power Supply : 12V DC ±30%, max. 2.7W (12V DC, IR on)
• Dimensions : 70mm×70mm×149mm (2.76"×2.76"×5.87")
• Ingress Protection & Vandal Resistance : IP67
• Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
  * Start up should be done at above : -40°C (-40°F)
• Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

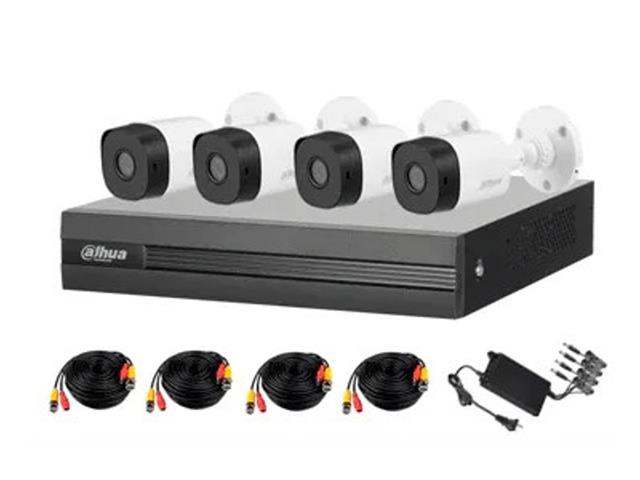

1. Datasheet - DHA XVR1B04-I/4-B1A21P 3.6MM KIT
