| Video Doorbell |
| Camera Parameters |
| Image Sensor |
1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |
Upper camera: 2.3mm @F/2.2 , diagonal field of view 162°
Bottom camera: 2.3mm @F/2.2 , diagonal field of view 155°
|
| Day & Night |
ICR infrared filter type ( Max: 6 meters) |
| Video Parameters |
| Max. Resolution |
Main camera: 2K (2048 × 1296)
Bottom camera: 1080p (1920 × 1080)
|
| DNR |
2D / 3D DNR |
| Video Compression |
H.265 / H.264 |
| Frame Rate |
15fps.Fixed frame rate |
| Radar Detection Parameters |
| Detection Angle |
180° |
| Detection Distance |
Max. 5 m (16.4 ft) |
| Sensitivity |
User adjustable (high: 2.5 m, medium: 1.8 m, low: up to 1 m) |
| Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Doorbell Button |
Yes (1 electronic doorbell button) |
| Reset button |
Yes (1 button) |
| Network Parameters |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Functions |
| Smart Alarm |
Human shape detection Package detection |
| Anti-Tamper Alarm |
Sound and light anti-dismantling alarm
(supports sending alerts to the smartphone)
|
| Video Intercom |
Two-Way talk |
| Wi-Fi Parameters |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Storage |
| Local Storage (on chime) |
Supports microSD card (max. 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay Storage (subscription required) |
| General |
| Operation Conditions |
-20°C to 50°C, humidity 95% or less (non-condensing) |
| Size |
166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch) |
| Battery Capacity |
5200 mAh rechargeable lithium battery |
| Power Supply |
Type-C: 5V(+-10%) |
| Power Consumption |
Max. 3 W |
| Chime |
| Power Supply |
AC 110 ~ 240 V |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Audio Output |
72dB within 1 m |
| Storage |
Supports microSD card (max.512 GB) |
| Weight |
83.6 g |
| In the box |
| In the box |

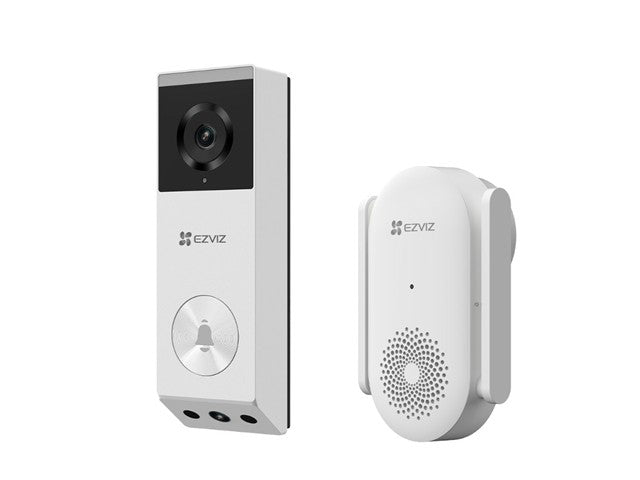

- EP3x Video Doorbell |
| - Mounting Plate |
| - Drill Template |
| - CH1 Chime |
| - Screw Kit |
| - Pin |
| - Power Cable |
| - Regulatory Information ×2 |
| - Quick Start Guide |
