EZVIZ Wireless 8CH NVR, Supports High-Res Cameras of up to 3K, 100m WiFi Range (2.4GHz), H2.65, 1xRJ45 10/100M, HDMI/VGA, 1xSATA Max:8TB (Excludes:hard Drive 3.5Inch), 2xAntenna, ONVIF, 3K/2K+/2K/1080p/720P, 12V1.5A 8W, 235×270×44.5mm, 932g
Wireless 8CH NVR
Overview
The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB², the X5S also receives data and video files from up to 8 connected Wi-Fi cameras³ at the same time.
Specifications
| IPC Access Capability |
| Wireless/Wired IPC Access Capability |
3K *4/3K *8 |
| Wired IPC Access Capability |
3K *4 (X5S-4W) / 3K *8 (X5S-8W) |
| Network Parameters |
| Antenna Number |
2 |
| Max Wireless Range |
100m |
| Radio Frequency |
2.4G |
| Ethernet Port |
One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth |
50 Mbps/100 Mbps |

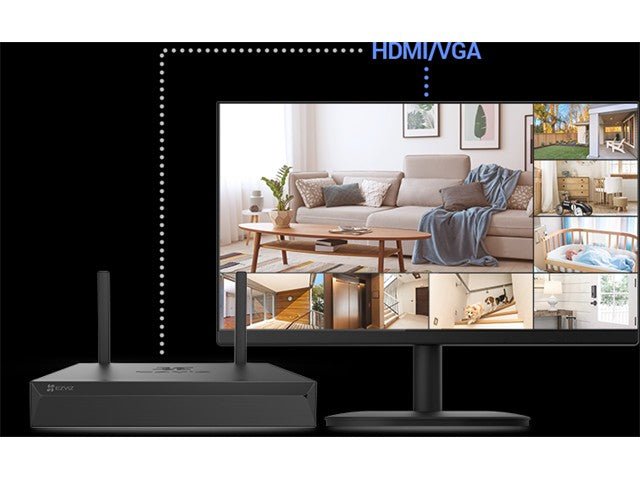

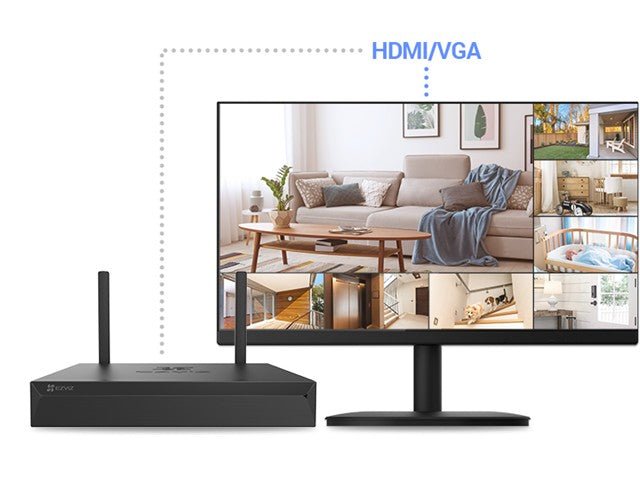

| Video Output |
| VGA |
1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
| HDMI |
1 channel resolution up to 2592*1944/30HZ |
| Audio/Video Codec |
| Recording Resolution |
3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding |
H.265, H.264 |
| Decode Playback |
Supports 4*3K/Supports 8*3K |
| Video Recording Management |
| Video Recording Mode |
Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode |
Hard disk backup, Internet application backup |
| Playback Mode |
Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol |
| Open Protocol Support |
HIKVISION, ONVIF (V.2.5) |
| HDD |
| Interface Type |
One built-in SATA port |
| Capability |
Supports 1TB to 8TB 3.5-inch HDD |
| External Interface |
| Audio Input/ Output |
Not support |
| Hardware Reset |
Supports |
| USB2.0 Interface |
2 |
| Dimensions |
| Product Dimensions |

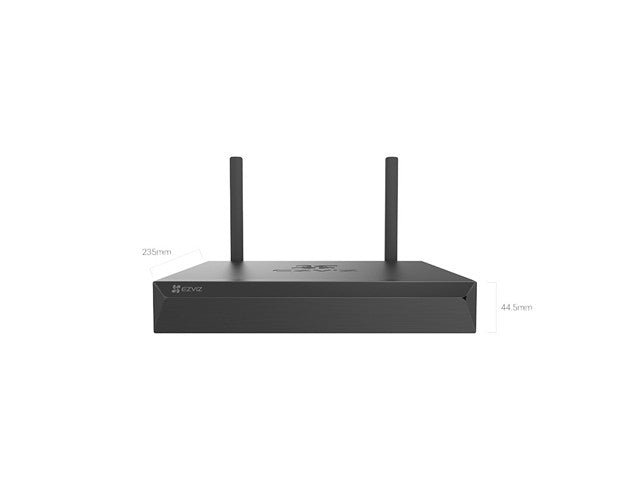

235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions |
387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply |
| DC |
12V/1.5A |
| Consumption |
| Standby status |
≤8W |
| Weight |
| Net Weight |
932 g |
| In the box |
| In the box |
- X5S NVR × 1 |
| - Power Adapter × 1 |
| - Mouse × 1 |
| - Screw Kit × 1 |
| - Regulatory Information × 2 |
| - Quick Start Guide × 1 |
| Certifications |
| Certifications |
CE / UL / RoHS / WEEE / REACH |
Downloads
Additional Information
| Device |
NVR |
| Type |
Wireless | 8CH |
