Hikvision Dome Camera 2MP 2.8mm Lens, 30m IR, 1/2.7" CMOS, H.265+, 32 Kbps~8Mbps, Digital WDR, BLC 3D DNR, 1 x RJ45 10M/100 M, iVMS-4200, Hik-Connect, 12VDC±25% 0.4A, PoE:802.3af, Class 3, 36V~57V, Open Network Video Interface, ISAPI, IP67
2 MP Fixed Dome Network Camera
Feature(s)
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
Specifications
Camera
- Image Sensor : 1/2.7" Progressive Scan CMOS
- Max. Resolution : 1920 × 1080
- Min. Illumination : Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time : 1/3 s to 1/100, 000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°
Lens
- Focal Length & FOV : 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
- Lens Mount : M12
- Focus : Fixed
- Aperture : F2.0
Illuminator
- Supplement Light Type : IR
- Supplement Light Range : Up to 30 m
- IR Wavelength : 850 nm
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main Stream: H.265/H.264/H.264+/H.265+
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile/Main Profile/High Profile
- H.265 Type : Main Profile
- Region of Interest (ROI)1 fixed region for main stream
Network
- Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View : Up to 6 channels
- API : Open Network Video Interface, ISAPI
- User/Host : Up to 32 users. 3 levels: administrator, operator and user
- Clienti : VMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night Switch : Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) : Digital WDR
- Image Enhancement : BLC, 3D DNR
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event : Motion detection, video tampering alarm, exception
- Linkage : Upload to FTP, notify surveillance center, send email
General
- Power
- 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Material : Metal & Plastic
- Dimension : Ø110 mm × 82.4 mm (Ø4.4" × 3.2")
- Package Dimension : 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- Weight : Approx. 410 g (0.9 lb.)
- With Package Weight : Approx. 610 g (1.3 lb.)
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language : English, Ukrainian
- General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Downloads
Additional Information
| Device |
Camera |
| Type |
2 MP | Fixed Dome | Network |

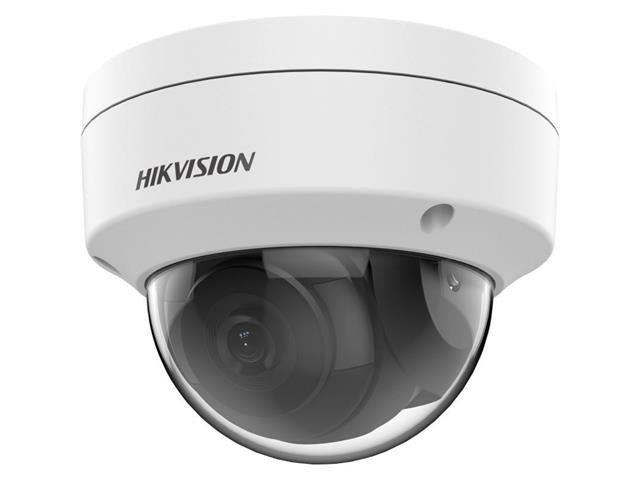

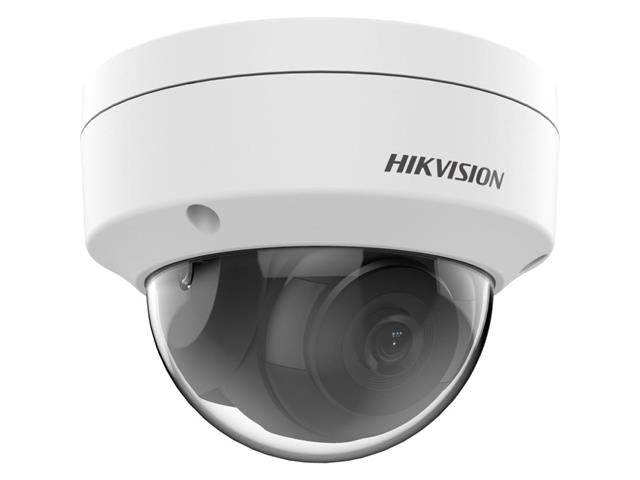

Enhance your security with the HKV DS-2CD1123G0E-I Dome Camera. Featuring a 2MP resolution and advanced H.265+ compression, this camera delivers crystal-clear images even in low light. With a robust IP67 rating for water and dust resistance and exceptional infrared capabilities for night vision, you can trust this durable camera to protect your property day and night.
