HKV DS-2CD2646G2HT-IZS
SKU: HKV DS-2CD2646G2HT-IZS
BRAND: Hikvision
R 4,588.50 (inc VAT) R 3,990.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hikvision Dark Fighter Motorized Bullet Camera 4MP, 1/3" Progressive Scan CMOS, 2.8~12 mm Lens, Up to 60m, Video Bit Rate:32 Kbps to 8 Mbps, H.265/ H.264, Max Res:2688×1520, Built-in Micro SD Slot, Up to 512 GB, 1xRJ45 10 M/100 M

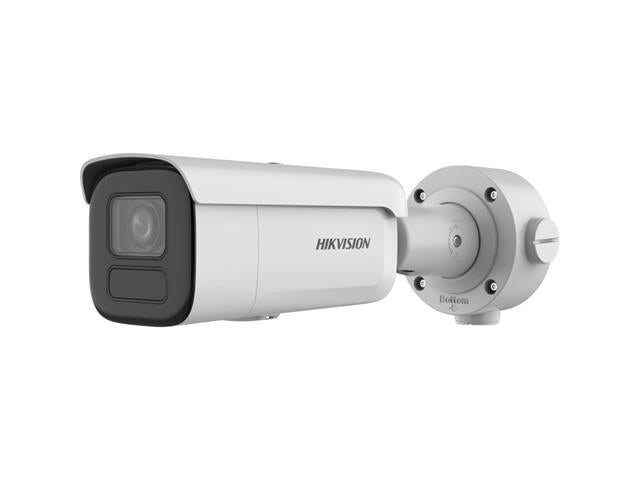

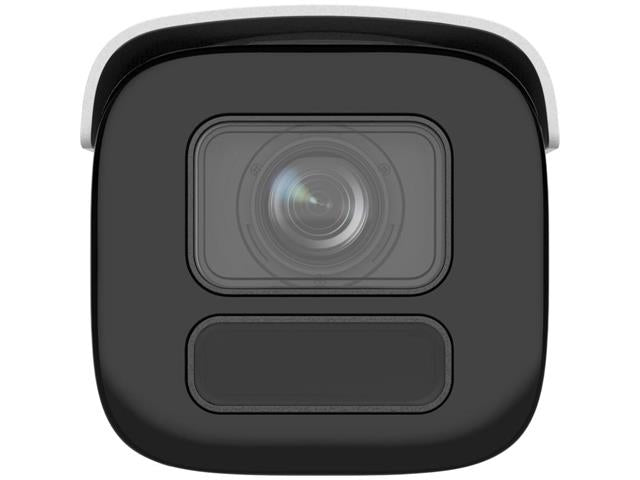

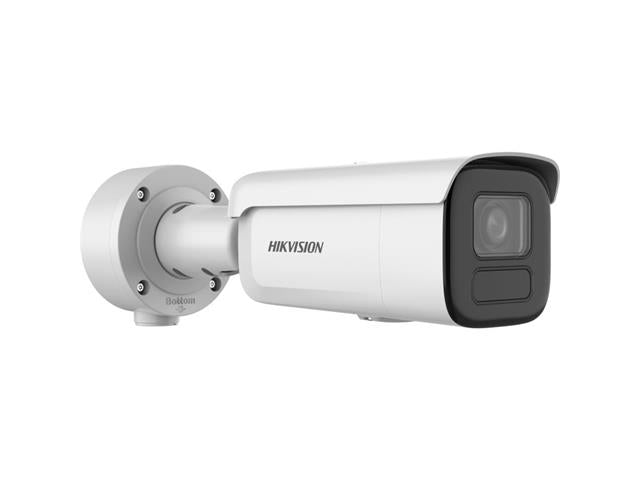

Dark Fighter Motorized Bullet Camera
Feature(s)
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Focus on human and vehicle classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)
Specifications
Camera
Image Sensor : 1/3" Progressive Scan CMOS
Max. Resolution : 2688 × 1520
Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type : Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 105.4° to 34.3°, vertical FOV 56.1° to 19.3°, diagonal FOV 125.8° to 39.4°
Lens Mount : Ø14
Iris Type : Fixed
Aperture : F1.0
Depth of Field : 1 m to ∞
DORI
DORI
Wide: D: 63.4m, O: 25.2 m, R: 12.7 m, I: 6.3 m
Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m
Illuminator
Supplement Light Type : IR
Supplement Light Range : Up to 60 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
Audio
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering : Yes
Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage : NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client : iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch : Yes
Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch : Day,Night,Auto,Schedule
Image Enhancement : BLC,HLC,3D DNR
SNR : ≥ 52 dB
Wide Dynamic Range (WDR) : 120 dB
Privacy Mask : 4 programmable polygon privacy masks
Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key : Yes
Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event : Scene change detection
Linkage : Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Face Capture : Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 15 W
Material : Front cover: Metal, body: Metal, bracket: Metal
Dimension : 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
Package Dimension : 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight : Approx. 1490 g (3.3 lb.)
With Package Weight : Approx. 2349 g (5.2 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function : Heartbeat,mirror,password reset via email,pixel counter,anti-banding
Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Downloads
Additional Information
Device
Camera
Type
Dark Fighter | Motorized | Bullet
Enhance your security with the HKV DS-2CD2646G2HT-IZS Bullet Camera. This advanced 4MP camera features Dark Fighter technology for exceptional low-light performance, ensuring clear images day or night. With its motorized varifocal lens, easy installation, and robust IP67 weather resistance, it’s perfect for any environment. Protect your property with intelligent human and vehicle classification for smarter surveillance.
