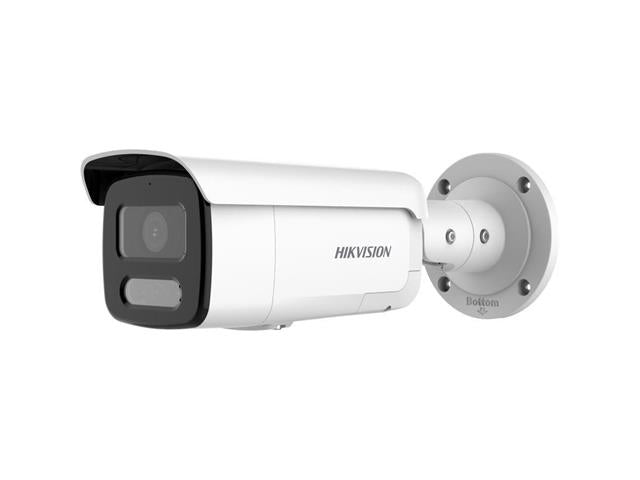

HKV DS-2CD2T47G2H-LISU/SL 2.8MM
SKU: HKV DS-2CD2T47G2H-LISU/SL 2.8MM
BRAND: Hikvision
R 3,750.00 (inc VAT) R 3,260.87 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hikvision Smart Hybrid Light With ColorVu Bullet Network Camera 4MP 2.8mm Lens, 60m IR, 1/1.8" Progressive Scan CMOS, 32Kbps~8 Mbps, CBR/VBR, WDR:130dB, 1xRJ45 10M/100M, Built-in Mic & Speaker, Micro SD Card Slot Up to 512GB, 12VDC, POE, IP67
4 MP Fixed Bullet Network Camera
Feature(s)
High quality imaging with 4 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Support on-board storage up to 512 GB (SD card slot)
Audio and alarm interface available
Water and dust resistant (IP67)
Specifications
Camera
Image Sensor : 1/1.8" Progressive Scan CMOS
Max. Resolution : 2688 × 1520
Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8
Focal Length & FOV : 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
Lens Mount : M16
Iris Type : Fixed
Aperture : F1.0
Depth of Field : 2.8 mm: 2.5 m to ∞
DORI
DORI : 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type : IR,White Light
Supplement Light Range : Up to 60 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*The third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
Audio
Audio Type : Mono sound
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering : Yes
Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View : Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage : NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client : iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch : Yes
Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch : Day,Night,Auto,Schedule
Image Enhancement : BLC,HLC,3D DNR,Defog
SNR : ≥ 52 dB
Wide Dynamic Range (WDR) : 130 dB
Privacy Mask : 4 programmable polygon privacy masks
Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : Yes,1 built-in microphone
Built-in Speaker : Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key : Yes
Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage : Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Smart Event : Scene change detection
Deep Learning Function
Face Capture : Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material : Front cover: metal, body: metal, bracket: Metal
Dimension : 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Dimension : 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight : Approx. 1205 g (2.7 lb.)
With Package Weight : Approx. 1920 g (4.2 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function : Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Downloads
Additional Information
Device
Camera
Type
4 MP | Fixed | Bullet | Network
Enhance your security with the Hikvision Smart Hybrid Light ColorVu Bullet Network Camera. Featuring a 4MP resolution and advanced 130 dB WDR technology, this camera delivers crystal-clear imaging even in challenging lighting. With built-in two-way audio, strobe light alarms, and IP67 weather resistance, it's perfect for reliable outdoor surveillance. Enjoy peace of mind with intelligent human and vehicle detection and expandable storage up to 512GB.
