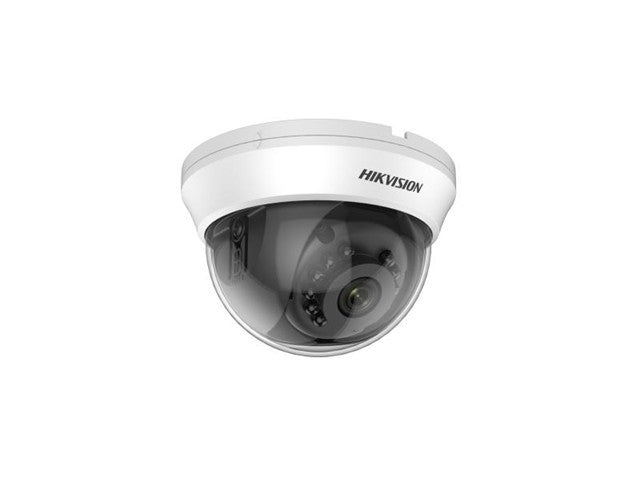

• 2 MP indoor dome camera
• Smart IR: up to 20 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

• Image Sensor: 2 MP CMOS
• Resolution: 1920 (H) × 1080 (V)
• Illumination: 0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 70°, Rotation: 0 to 360°
• Signal System:PAL/NTSC

Lens

• Lens Type: 2.8 mm fixed lens
• Focal Length & FOV: 2.8 mm, horizontal FOV: 101°, vertical FOV: 60
• Lens Mount: M12


• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate: TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC, HLC
• White Balance: Auto/Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material: Plastic
• Dimension: Φ 98 mm × 65.4 mm (Φ 3.86" × 2.57"), Approx. 146 g (0.32 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply: 12 VDC ± 25%
• Consumption: Max. 1.8 W
• IR Range: Up to 20 m

1. Datasheet
