Hikvision Smart Hybrid Light ColorVu Turret Fixed Camera 2MP 2.8mm Lens, 20M, PAL/NTSC, Res:1920×1080, 3D DNR, ICR, Lens Mount:M12, STD/HIGH-SAT/HIGHLIGHT, TVI/AHD/CVI/CVBS, Metal, WDR/BLC/HLC, 12VDC, IP67

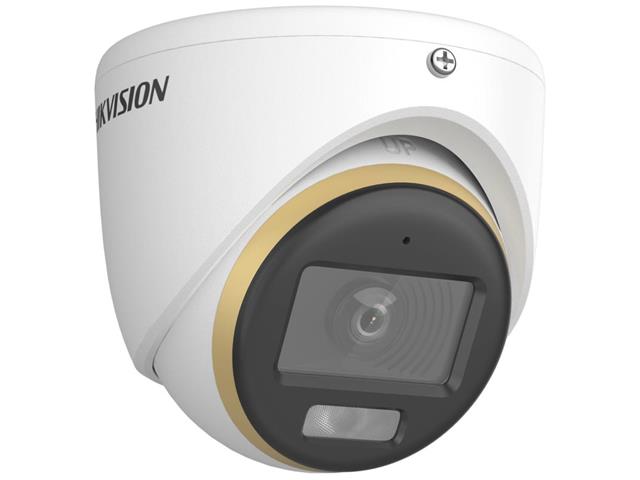

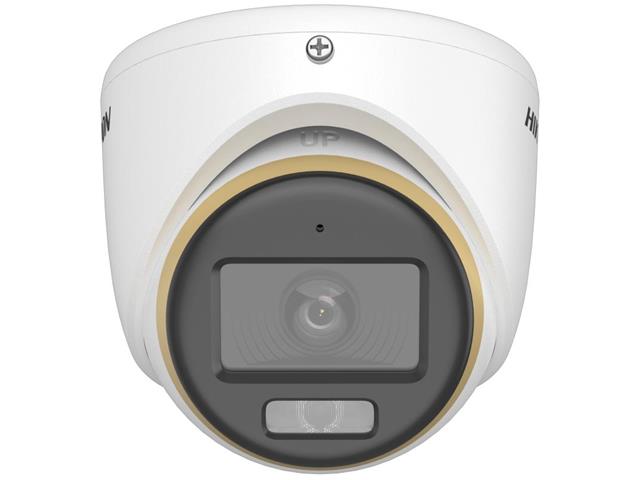

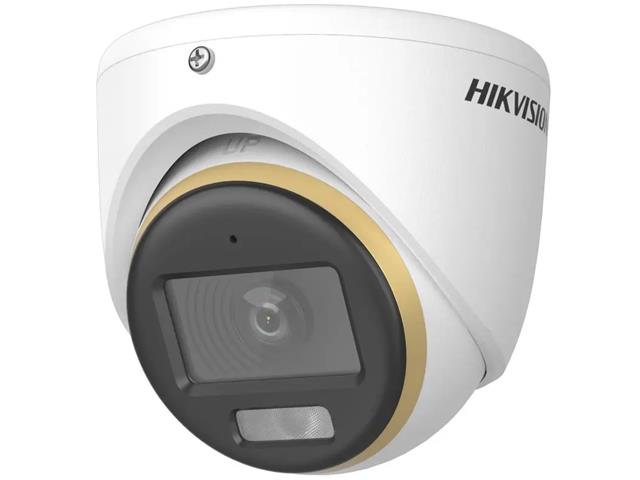

2MP Smart Hybrid Light ColorVu Fixed Turret Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- Up to 20 m IR distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night : ICR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System : PAL/NTSC
- Slow Shutter : Max. 16 times
Lens
- Lens Type : 2.8 mm fixed focal lens
- Focal Length & FOV : 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
- Lens Mount : M12
Microphone
- Pickup Distance : In a radius of up to 5 m
- Amount : 1
Illuminator
- Supplement Light Type : Smart, IR, White Light
- Supplement Light Range : IR: Up to 20 m, White Light: Up to 20 m
- Image
- Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
- Image Settings
- Brightness,
- Contrast,
- Sharpness,
- Anti-banding,
- AGC
- Frame Rate
- TVI: 1080p @25 fps/30 fps
- CVI: 1080p @25 fps/30 fps
- AHD: 1080p @25 fps/30 fps
- CVBS: PAL/NTSC
- Day/Night Mode : Auto/Color
- Wide Dynamic Range (WDR) : ≥130 dB
- Image Enhancement
- WDR,
- BLC,
- HLC,
- Global,
- HLS
- Privacy Mask : 4 programmable privacy masks
- Noise Reduction : 3D DNR
- White Balance
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
- Alarm : Solid Light Alarm(White Light)
Event
- Motion Detection : 4 programmable motion areas
General
- Material : Metal
- Dimension : Ø85.11 mm × 77.62 mm (Ø3.35" × 3.05")
- Weight : Approx. 335 g (0.74 lb.)
- Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication : HIKVISION-C
- Language : English
- Power
- 12 VDC ± 25%, max. 5.4 W
- *You are recommended to use one power adapter to supply the power for one camera.
Approval
Downloads
Additional Information
| Device |
Camera |
| Type |
2MP | Smart | Hybrid Light | ColorVu Fixed | Turret |
