Hikvision ColorVu Turret Camera, 2MP 2.8mm Lens, 40M, Res:1920×1080, OSD menu, 3D DNR, true WDR, 4IN1 (4 signals switchable TVI/AHD/CVI/CVBS) , MAX:3W, Image Mode: STD/HIGH SAT, 12VDC, Brightness, Sharpness, 3D DNR, Mirror, Smart light, IP67

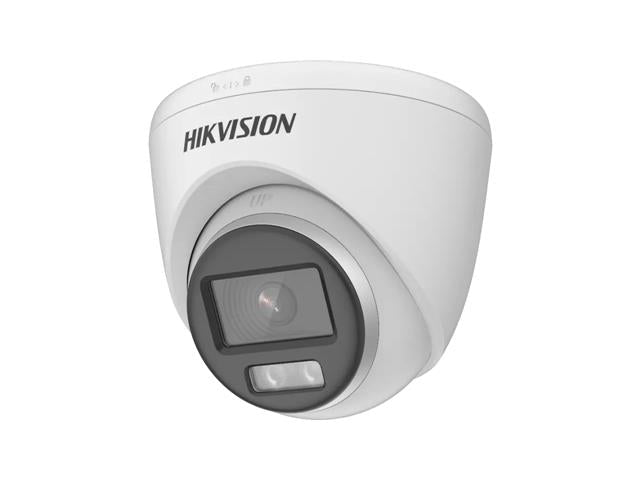

2 MP ColorVu Fixed Turret Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Signal System : PAL/NTSC
- Resolution : 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens : 2.8 mm Fixed Lens
- Field of View : 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°
- Lens Mount : M12
- Light Alarm : Solid Light Alarm (White Light)
- WDR (Wide Dynamic Range) : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
- White Light : Auto/Off
- Image Mode : STD/HIGH-SAT/HIGHLIGHT
- AGC : Yes
- Day/Night Mode : Color
- White Balance Auto/Manual
- AE (Auto Exposure) Mode : DWDR, BLC, HLC, Global
- Noise Reduction : 3D DNR/2D DNR
- Language : English
- Function : Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply :
- 12 VDC ± 25%
- *You are recommended to use one power adapter to supply the power for one camera.
- Consumption : Max. 4 W
- Protection Level : IP67
- Material : Main body: Metal, Enclosure: Plastic
- White Light Range : Up to 40 m
- Communication : HIKVISION-C
- Dimension : Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
- Weight : Approx. 355 g (0.78 lb)
Downloads
Additional Information
| Device |
Camera |
| Type |
2 MP | ColorVu | Fixed Turret |
Enhance your security with the HKV DS-2CE72DF0T-F ColorVu Turret Camera. Featuring a 2MP resolution and a 2.8mm lens, it delivers vibrant 24/7 color imaging and sharp clarity with advanced 3D DNR technology. With an impressive 40m night vision range and durable IP67 weather resistance, this versatile camera ensures reliable performance in any condition. Upgrade your surveillance system today!
