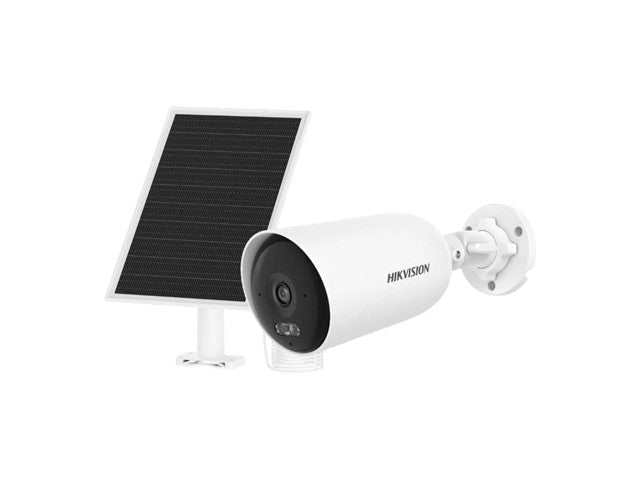

• Support AOV Mode：24/7 video recording
• 8 W solar panel and 9000 mAh battery
• Support 4G LTE data transmission
• Smart Hybrid Light: 30 m white light and IR
• Motion Detection 2.0: Support person and vehicle detection
• Built-in microphone and speaker, support two-way audio
• Water and dust resistant (IP66)

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Max. Resolution : 2560 × 1440
• Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON)
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°

Lens

• Focal Length & FOV : 2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9°
• Lens Type : Fixed focal lens, 2.8
• Aperture : F1.6
• Lens Mount : M12
• Iris Type : Fixed
• Depth of Field : 2.8 mm: 1.4 m to ∞

DORI

• DORI : Fixed lens: : 2.8mm D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m

Illuminator

• Supplement Light Type : IR,White Light
• Supplement Light Range : Up to 30 m
• IR Wavelength : 850 nm
• Smart Supplement Light : Yes

Video

• Main Stream
• 50 Hz: 12.5 fps {2560 x 1440, 1920 × 1080, 1280 × 720)
• 60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
• Video Compression : Main stream: H.265
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR

Audio

• Audio Compression : G.711ulaw
• Audio Bit Rate : 64 Kbps(G.711ulaw/G.711alaw)
• Audio Sampling Rate : 8 kHz/16 kHz
• Environment Noise Filtering : Yes

Network

• Simultaneous Live View : Up to 6 channels
• API : ISAPI,SDK
• User/Host
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Client : Hik-Connect

• Mobile Communication
• Standard : LTE-TDD
• Frequency
• EU:LTE-FDD: B1/3/5/7/8/20/28
• LA:LTE-FDD: B2/3/4/5/7/8/28/66
• Uplink and Downlink Data Rate : Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
• SIM Card Type : Nano SIM


• Image Settings : brightness,contrast,white balance,saturation,sharpness
• Day/Night Switch : Day,Night,Auto,Schedule
• Image Enhancement : BLC,HLC,3D DNR
• Wide Dynamic Range (WDR)  : Digital WDR

Interface

• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone : Yes,1 built-in microphone
• Reset Key : Yes
• Built-in Speaker : Yes, 1 built-in speaker

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle))
• Linkage : Upload to FTP/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

General

• Power : 5 V, 2 A
• Material : Plastic
• Dimension : Ø81.6 mm × 221.3 mm (Ø3.2" × 8.7")
• Package Dimension : 320 mm × 228 mm × 148 mm (12.6" × 9.0" × 5.8")
• Approx. 480 g (1.1 lb.)
• With Package Weight : Approx. 1540 g (3.4 lb.)
• Startup and Operating Conditions : 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• General Function : mirror,flash log
• Storage Conditions : -20 °C to 25 °C (-4 °F to 77 °F). Humidity 70% or less (non-condensing)
• Flashing Light : Yes

• Battery
• Battery Type : Lithium
• Capacity : 9000 mAh (3.7 V)
• Max. Charging Voltage : 8.4 V
• Battery Voltage : 6 V to 8.4 V
• Operating Temperature
• Charging: 0°C to 45°C (32°F to 113°F)
• Discharging: -20°C to 55°C (-4°F to 131°F)
• Cycle LifetimeCap(800th)≥80%

Approval

• RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
• Safety
• CB: IEC 62368-1: 2014+A11,
• CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment
• CE-RoHS: 2011/65/EU,
• WEEE: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• Protection : IP66: IEC 60529-2013

Solar Power

• Solar Panel Type : Monocrystalline silicon solar panel
• Power Consumption : 8 W
• Solar Panel Dimensions & Weight : 263.8 × 171.7 × 18.5 mm / 450 g
• Working Temperature : -40℃ to 85℃ (-40°F to 185°F)
• Protection : IP65
