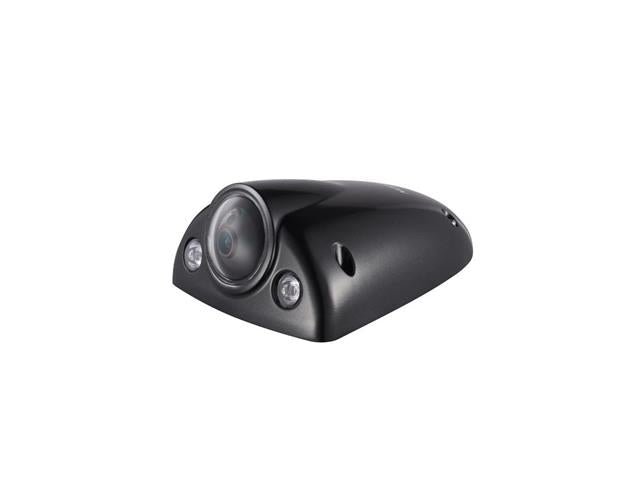

HKV DS-2XM6522G1-I/ND (2.8MM)
SKU: HKV DS-2XM6522G1-I/ND (2.8MM)
BRAND: Hikvision
R 4,197.50 (inc VAT) R 3,650.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hikvision Mobile Network Camera 2MP, Upto 30m IR, 1/2.8″ Progressive Scan CMOS, 3D DNR, (-I/ND): RJ45 Interface PoE: (802.3af, 36V~57V) Max10W, 120dB, Upto 256GB On Board Storage, User/Host:Upto 32 Users, IR Wavelength:850nm, IP68
2MP Mobile Network Camera
Feature(s)
High quality imaging with 2MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP68,IP69K) and vandal proof (IK10)
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
3D DNR technology delivers clean and sharp images
Specifications
Selection Parameter
Min. Illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
On-Board Storage : Up to 256 GB
Protection Level : IP68, IP69k, IK10
Wi-Fi Support : No
Appearance Style Wedge
Resolution : 2MP
Lens Type : Fixed Lens
Encoding : H.265+, H.265, H.264+, H.264
Camera
P/N : P/N
Sensor : 1/2.8′′ Progressive Scan CMOS
Protection Level : IP68, IP69k, IK10
Shutter Speed : 1/3 s to 1/100, 000 s
Slow Shutter : Yes
Wide Dynamic Range : 120 dB
Day & Night : IR Cut Filter
Angle Adjustment 2.8mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°
Lens
Focal Length & FOV : 2.8mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
Lens Mount : M12
Aperture 2.8mm/4mm/6mm: F1.6
Illuminator
Smart Supplement Light : Support
IR Wavelength : 850 nm
IR Range : Up to 30 m
Video
Max. Resolution : 1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288,
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240,
Video Compression
Main Stream: H.265 /H.264
Sub-Stream: H.265 /H.264 / MJPEG
Third Stream: H.265 /H.264
Video Bit Rate
Main Stream: 256 Kbps to 16 Mbps
Sub-Stream: 256 Kbps to 4 Mbps
Third Stream: 256 Kbps to 4 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Smart264 Type : Main Stream supports
Smart265 Type : Main Stream supports
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed regions for each stream, and dynamic object tracking
Network
Protocols : TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, UDP, SSL/TLS, RTCP, ICMP, IGMP
Simultaneous Live View : Up to 20 channels
API : HIKSDK, ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Web Browser : Plug-in required live view: IE8+
SmartIR : No
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client
software or web browser
Day/Night Switch : Day/Night/Auto/Schedule
SNR : >50 dB
Image Enhancement : BLC, HLC, 3D DNR, Defog, EIS
Privacy Mask : 4 regions of privacy mask
Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Digital Noise Reduction : 3D DNR
Interface
Ethernet Interface
Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port
-M: 1 four-core M12 aviation plug
SD Card Extension : Yes
Audio : No
Alarm : No
RS-485 : No
Reset Key : Yes
Heater : Yes
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error
Smart Event
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection, defocus detection
Linkage : Upload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture
General
Power Interface Type
-I/ND: RJ45 interface, PoE power supply
-ID: Ø 5.5mm coaxial power plug, DC power supply
-IDM: two-core Molex connector, DC power supply
-IM/ND: four-core M12 aviation plug, PoE power supply
Power Supply
-ID, -IDM: 9-36 V, two-core terminal block, reverse polarity protection&PoE802.3af;
-I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3
Camera : Material Metal
Camera Dimension
Camera: 163.7 × 122.6 × 65.1 mm (6.4" × 4.8" × 2.6")
With package: 252 × 190 × 108 mm (9.9" × 7.5" × 4.3")
Camera Weight
Camera: Approx. 905 g (2.0 lb.)
With package: 1271 g (2.8 lb.)
Startup and Operating Conditions : -40°C to 75°C (-40°F to 167°F). Humidity 95% or less (non-condensing)
Language : upport English, German, French and Russian
General Function : Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Power Consumption
-ID, -IDM: 9~36 V DC, max. 10 W
-I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W
Downloads
Additional Information
Device
Camera
Type
2MP | Mobile | Network
Enhance your security with the HKV DS-2XM6522G1-I/ND Mobile Network Camera. This 2MP camera features 120dB wide dynamic range and 30m IR capability for crystal-clear imaging, day or night. With its IP68 and IK10 ratings, it ensures durability against harsh environments, while H.265+ compression technology optimizes storage. Protect your property with reliable surveillance that adapts to any conditions.
