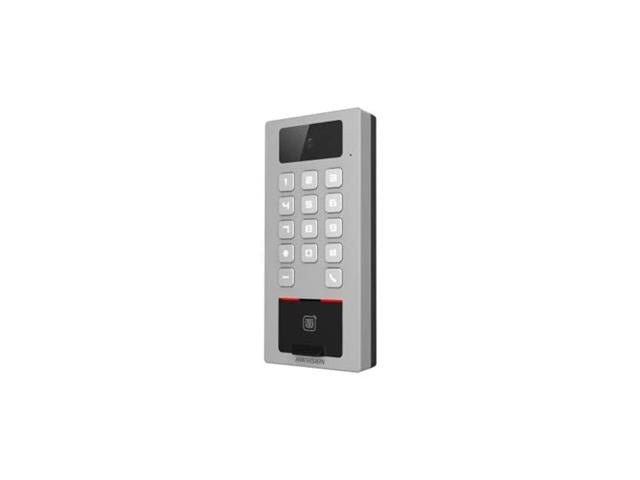

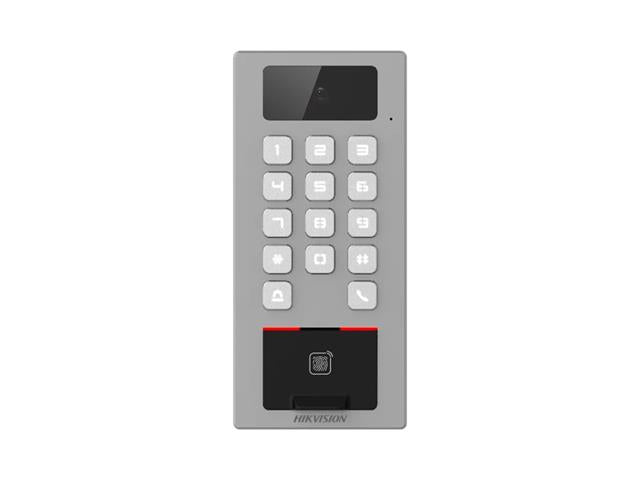

Hikvision Fingerprint Access Control Terminal, Finger Capacity:10 000, Card Capacity:100 000, Event Capacity:300 000, RS485, M1 Card, DESfire Card, 1xRJ45 10/100Mbps, Wiegand, USB, Built-in Omnidirectional Microphone, Ram:256MB, PSU12V~24V 1A
Fingerprint Access Control Terminal
Features
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, fingerprint, PIN, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
Specifications
System
Video
- Lens : 1
- Video compression standard : H.264 and H.265
- Resolution : 2 MP
- FOV : HFOV = 110°; VFOV = 81°; DFOV = 122°
- Video standard : PAL (Default) and NTSC
Network
- Wired network : 10 M/100 M self-adaptive
- Wi-Fi : Support
Interface
- Network interface : 1
- Lock control : 1
- Exit button : 1
- Door contact input : 1
- Alarm input : 1
- Alarm output : 1
- TAMPER : 1
- RS-485 : 1
- Wiegand : 1 (output)
- SD Card Slot : 1
Capacity
- Fingerprint capacity : 10,000
- Card capacity : 100,000
- Event capacity : 300,000
Authentication
- Fingerprint module : Capacitive fingerprint recognition
- Card type : M1 card;DESfire card
- Card reading distance : 0 ~ 3 cm
General
- Power supply : 1 A (12 VDC to 24 VDC)
- Power consumption : ≤12 W
- Working temperature : -40 °C to +70 °C (-40 °F to +158 °F)
- Protective level : IK09, IP65
- Language : Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function
- Two-way audio : Support
- Video intercom : Support
- Hik-Connect : Support
Downloads
Additional Information
| Device |
Terminal |
| Type |
Fingerprint | Access Control |
