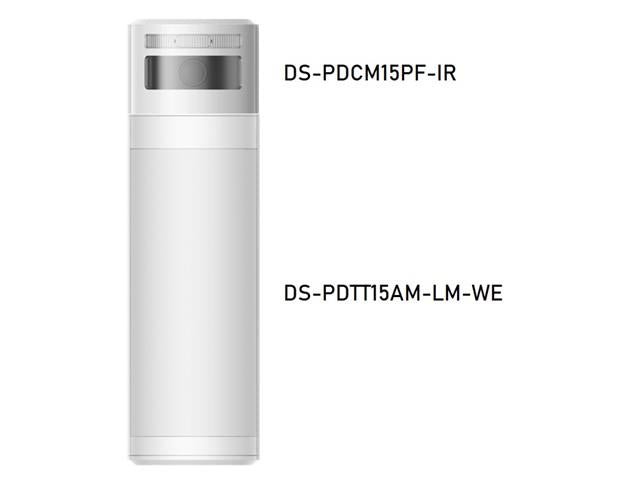

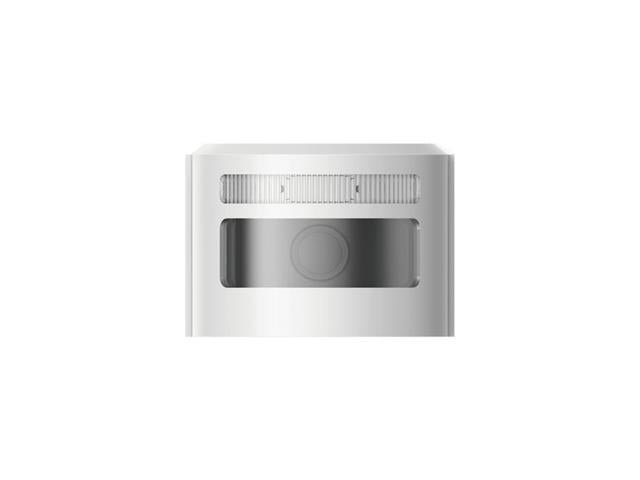

Hikvision RF Camera Module 2mm Lens, 15m IR, 1/2.7" CMOS, 3D Digital Noise Reduction, PSU: 3VDC 1200ma, IP66, (Used with DS-PDTT15AM-LM-WE)
RF Camera Module
Overview
Camera module that works with our newly released wireless
outdoor Tri-tech detector, built-in CMOS high quality color
camera that provide you an ideal solution for video
verification, both users and CMS can verify alarms day and
night by viewing real-time images captured by this camera
Feature(s)
RF Camera Module
- 1/2.7" Progressive Scan CMOS
- 2.0 mm fixed lens
- 3D Digital Noise Reduction
- Easy Installation
- The direction of the Angle can be adjusted to fit the TT Detector's Angle
- Protection Level IP66
Specifications
Detection Performance
-
Detection Method : Video Verification
Feature
-
Digital Noise Reduction : 3D
-
Focal length : 2.0mm@F2.25
Video
-
Field Angle : 137.2°(H), 80.1°(V)
-
Image Type : JPEG
-
Resolusion : 640*480;320*240;160*120
-
Fill Light : Infrared Light
-
Fill Range : 15m
-
Day/Night Switch : Auto
Interface
-
Communication Interface : 1 12-Bit Data Interface
Electrical Characteristics
-
Power Supply : 3 VDC
-
Power Consumption : 1200mA
General
-
Operation Temperature : -25 °C to 60 °C (-13 °F to 140 °F)
-
Storage Temperature : -25 °C to 60 °C (-13 °F to 140 °F)
-
Operation Humidity : 10% to 90%
-
IP Rate : IP66
-
Dimension(WxHxD) : 74.1mm x 72.35mm x 53mm
-
Weight : 155g
Downloads
Additional Information
| Device |
Module |
| Type |
RF | Camera |
Enhance your security with the Hikvision DS-PDCM15PF-IR RF Camera Module. Featuring a high-quality 2mm lens and 15m infrared capability, this reliable camera ensures clear video verification day or night. Its IP66 rating guarantees durability, while 3D digital noise reduction provides crisp images, making it the perfect addition to your wireless outdoor Tri-tech detector.
