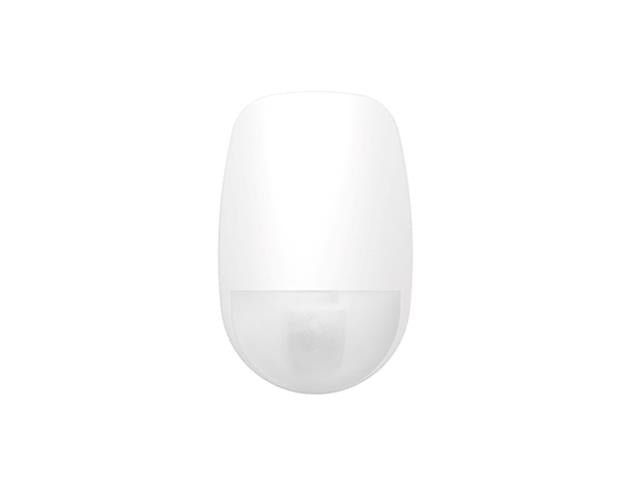

Hikvision Wireless Dual-Tech Detector 868MHZ , Pet Immunity:30KG , Detection Range:12m , 6500lux , Two-Way RF Wireless , CR123A×2 , Detection Zones:52 , Microwave Frequency:24GHz(24.15～24.25GHz) , 3D Optics Including Creep-Zone Protection , 141g
Wireless Dual-Tech Detector
Overview
DS-PDD12P-EG2-WE is a fully supervised two-way wireless
detector featuring motion and microwave detection,
tamper protection,low battery and supervision. It can
operate for up to 5 years from two in-built batteies, and
monitors the area within 12m radius, ingnores animals
while recognizing human from the first step.
Features
- 3D optics including creep-zone protection, full coverage without dead angle
- 24G microwave to prevent wall penetration
- Digital temperature compensation
- Fully remote configurable through APP
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specifications
Detection Performance
- Detection Method : Passive Infrared,Microwave
- Sensor Model : SFG321-711
- Detection Range : 12m
- Detection Angle : 85.9°
- Detection Zones : 52
- Detectable Speed : 0.3 to 2m/s
- Sensitivity : Auto, High, Pet
- Pet Immunity : 30 kg
- White Light Filter : 6500lux
- Microwave Frequency : 24GHz (24.15~24.25GHz)
- Digital Temperature Compensation : Support
- Creep Zone Protection : Support
Feature
- Digital Processing : Support
- Sealed Optics : Support
- Tamper Protection : Front, Rear
- Environment Temperature Indicator : Support
- Signal Strength Indicator Support
Interface
- Power Switch : Power Up Enrolling
- LED Indicator : Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
- Transmission Technology : Tri-X Wireless
- Transmission Method : Two-Way RF Wireless
- Transmission Frequency : 868MHz
- Transmission Security : AES-128 Encryption
- Transmission Range(Free Space) : 1.6 km
- Frequency Hopping : Support
- Enrolling Method : Power up,Remote ID,QR Code
Electrical Characteristics
- Standard Battery Life : Up to 5 years (standby time)
Power Supply : Battery Powered
- Battery Type : CR123A × 2
- Typical Voltage : 3V
General
- Operation Temperature : -10°C to 55°C (14 °F to 131 °F)
- Storage Temperature : -20°C to 60°C (-4 °F to 140 °F)
- Operation Humidity : 10% to 90%
- Dimension(WxHxD) : 65.5 mm × 103 mm × 48.5 mm
- Weight : 141 g
- Mounting Height : 1.8 m to 2.4 m
- Mounting Method : Wall
- Application Scenario : Indoor
- Bracket : Optional Wall & Ceiling Accessory
Downloads
Additional Information
| Device |
Detector |
| Type |
Wireless | Dual-Tech |
The HKV DS-PDD12P-EG2-WE is a cutting-edge wireless dual-tech detector that offers reliable 12m coverage and pet immunity up to 30kg. Designed for seamless integration, it features advanced 3D optics and tamper protection, ensuring your space remains secure while ignoring pets. Enjoy up to five years of battery life and easy app configuration for ultimate convenience. Elevate your security with this robust, innovative solution.
