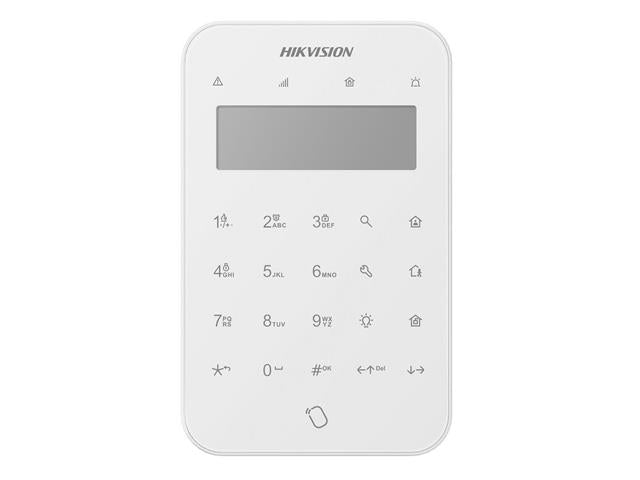

HKV DS-PK1-LT-WE
SKU: HKV DS-PK1-LT-WE
BRAND: Hikvision
R 1,523.75 (inc VAT) R 1,325.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hikvision 868MHz Wireless LCD Keypad Multiple Operations Like Stay/Away Arm, Disarm, Silent Alarm, Output Control, RF Distance:1200m (open area), Tri-X Wireless Technology, Battery type:CR123x4, 2GFSK, Number key:0-9, LED Backlight
868MHz Wireless LCD Keypad
Features
868MHz two-way wireless communication
LCD screen and LED to indicate system status
System configuration through LCD screen
Multiple operations like stay/away arm, disarm, silent alarm, output control
One-Push fire alarm, panic alarm, and medical alarm
Full touch key design with LED backlight
Fully remote configurable through App
Specifications
Hardware features
Tag reader built in : Supported
Serial port : 3
Tamper-Proof : Supported, front and rear
Buzzer : Supported
Power switch : Power on/off
Electrical characteristics
Battery type : Four CR123 batteries
Operation humidity : 10% to 90%
Operation temperature : -10 °C to 55 °C
Battery life span : Up to 2 years (standby time)
Power consumption
Quiescent current: 80uA
Max current: 300mA
Voltage: 3v
Wireless transmission
RF frequency : 868 MHz
RF modulation : 2GFSK
RF distance : 1200m (open area)
Wireless technology : Tri-X Wireless Technology
Display
Numeric key
Number key: 0-9
Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left
LED Indicator : Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red)
General
Installation method : Wall-mounting
Dimension(WxHxD) : 174.63 mm × 109.62 mm × 25.25 mm
Weight
With batteries: 348 g
Without batteries: 282 g
Color : White
Downloads
Additional Information
Device
Keypad
Type
868MHz | Wireless | LCD
Enhance your security with the HKV DS-PK1-LT-WE Wireless LCD Keypad. Featuring 868MHz Tri-X technology and a user-friendly interface, it offers multiple functions like arming, disarming, and emergency alerts from up to 1200m away. With a sleek design and long battery life, this keypad ensures peace of mind at your fingertips.
