HiLook 16CH Lite 1U Turbo HD DVR H.265 Pro+, HDTVI/AHD/CVI/CVBS/IP Video Input, Up to 1080p Lite@15fps Encoding Capability, 1 SATA Interface (up to 10TB Capacity), 32 Kbps~4Mbps, 2×USB2.0, 1xRJ45 10/100Mbps, HDMI/VGA, 12VDC 1.6A

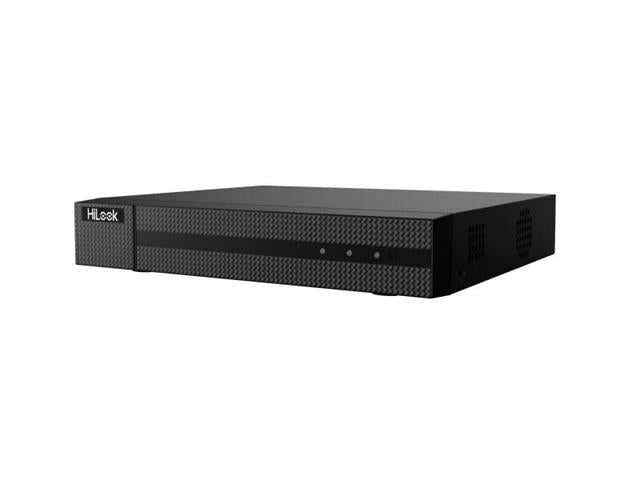

16CH Lite 1U Turbo HD DVR
Feature(s)
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
Specifications
Motion Detection 2.0
-
Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
-
IP Video Input
- 2-ch (up to 18-ch)
- Up to 5 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
- 16-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
-
HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
-
AHD Input : 1080p25, 1080p30, 720p25, 720p30
-
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
-
CVBS Input : PAL/NTSC
-
HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
Video Output Mode : HDMI/VGA simultaneous output
-
Audio Input : 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
-
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
-
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
-
Synchronous Playback : 16-ch
Recording
-
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
-
Frame Rate
- Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- For 1080p and 720p stream access CIF/QVGA@15 fps
- For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
-
Video Bitrate : 32 Kbps to 4 Mbps
-
Dual-stream : Support
-
Stream Type : Video, Video & Audio
-
Audio Compression : G.711u
-
Audio Bitrate : 64 Kbps
Network
-
Total Bandwidth : 96 Mbps
-
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP™, HTTPS, ONVIF
-
Remote Connection : 128
-

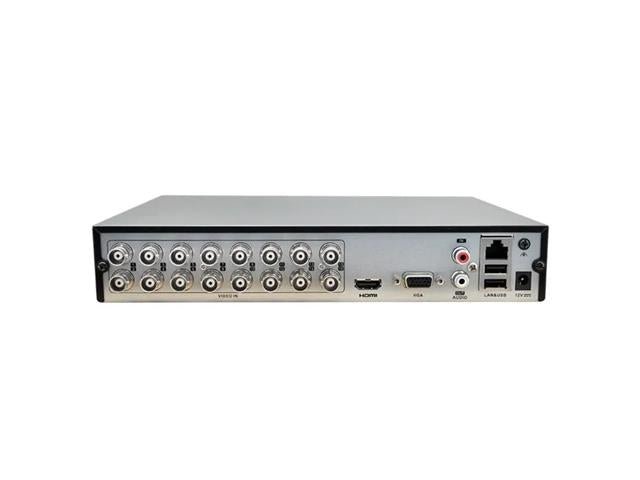

Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
-
SATA : 1, SATA interface
-
Capacity : Up to 10 TB capacity for each disk
-
USB Interface : 2 × USB 2.0
General
-
Power Supply : 12 VDC, 1.6 A
-
Consumption : ≤ 10 W (without HDD)
-
Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
-
Working Humidity : 10% to 90%
-
Dimension (W × D × H) : 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
-
Weight : ≤ 1.1 kg (without HDD, 2.4 lb.)
