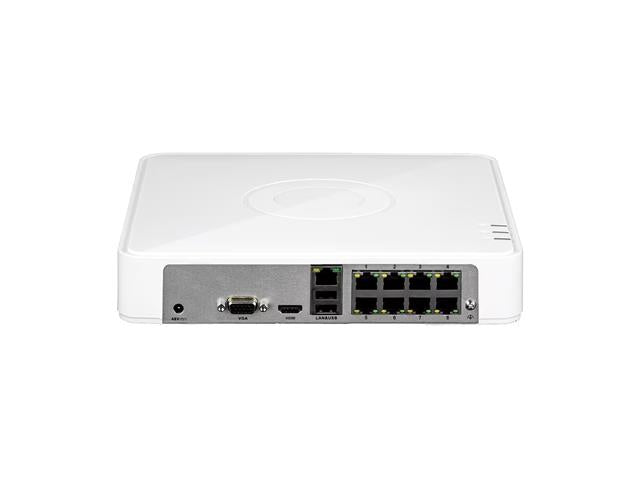

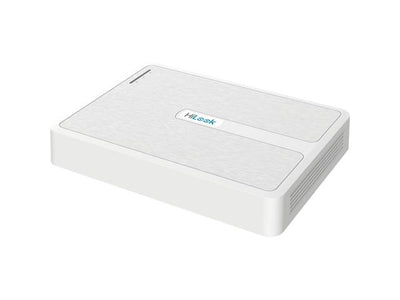

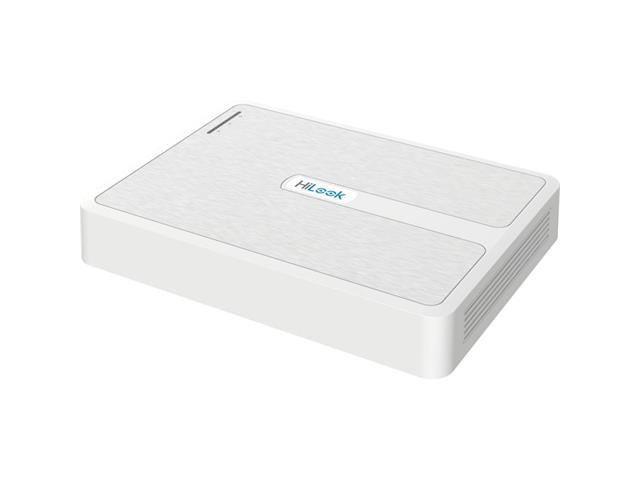

Hilook 8CH Mini 1U PoE NVR, H.265+, 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF, 4CH@1080p (25fps), 2CH@4MP (25fps), HDMI/VGA, 8xRJ45 10/100Mbps IEEE 802.3 af/at, 1xSATA Interface Up to 6TB, 2xUSB2.0, PSU:48VDC 1.8A, 285×210×48mm
8CH Mini 1U PoE NVR
Feature(s)
- H.265+/H.265/H.264+/H.264 video compression
- Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
Specifications
Video and Audio
- IP Video Input
- 8-ch
- Up to 6 MP resolution
- Incoming Bandwidth : 60 Mbps
- Outgoing Bandwidth : 60 Mbps
- HDMI Output : 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output : 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode : HDMI/VGA simultaneous output
Decoding
- Decoding Format : H.265+/H.265/ H.264+/H.264
- Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback : 4-ch
- Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type : Video, Video & Audio
Network
- Remote Connection : 16
- Network Protocol : TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE
- Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power : ≤ 75 W
- Standard : IEEE 802.3 af/at
Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 6 TB capacity for each disk
- Alarm In/Out : N/A
- USB Interface : Rear panel: 2 × USB 2.0
General
- Power Supply : 48 VDC, 1.8 A
- Consumption : ≤ 10 W (without HDD and PoE off)
- Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")
- Weight : ≤ 1 kg (without HDD, 2.2 lb.)
Downloads
Additional Information
| Device |
NVR |
| Type |
8CH | Mini | 1U | PoE |
