INTEGRA AP-ASU

Name: INTEGRA AP-ASU - Communica [Part No: INTEGRA AP-ASU]
Brand: Integra
SKU: INTEGRA AP-ASU
Price: 86.09 ZAR
Availability: InStock

SKU: INTEGRA AP-ASU

BRAND: Integra

R 99.00_{(inc VAT)}
R 86.09_{(ex VAT)} R 115.00 You Save 25% (R 28.91)

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Clearance Sale, Security, Access Control & Surveillance

Type: Access Automation

Category: Audio Door Phone, Clearance Sale, Intercoms

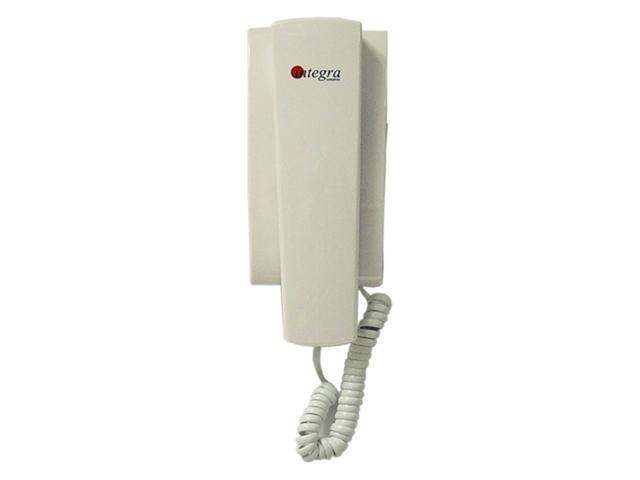

INTEGRA Audio Phone - Audio Slave Unit

Overview

2 of these Audio Phone Slave units can be added to INTEGRA KIT 1AP-1/3ASU. The Audio Phone can have a total of 3 Indoor Handsets and one Outdoor Doorstation.

Features

Indoor :

Power Supply : 119~240ACV 50/60HZ automatic
Volume of buzzer : 80dB ±2 @ 1m
Room Temperature : -10~+60°C
Humidity : 10%~90% no condensing
Dimension : 188x82x56mm
Power Consumption : 5W

Cabling :
Before installing the product, check the distance between indoor and outdoor and choose the most suitable cable for your installation according to the specification below:

0.4mm² mm² up to 30m
0.5mm² up to 50m
0.75mm² up to 100m
1.5mm² up to 200m
To install the lock, always use 1.5mm² cable for distances up to 50m
To connect the outdoor station to the indoor phone, use 1.5² cable

Specification

Enhance your INTEGRA KIT with the AP-ASU Audio Slave Unit, allowing seamless communication with up to three indoor handsets and one outdoor doorstation. Designed for reliable performance, it operates in diverse environments and features an 80dB buzzer for clear alerts. Upgrade your home audio system for ultimate convenience and security today!
