INTEGRA KIT 1AP-1/3ASU

Name: INTEGRA KIT 1AP-1/3ASU - Communica [Part No: INTEGRA KIT 1AP-1/3ASU]
Brand: Integra
SKU: INTEGRA KIT 1AP-1/3ASU
Price: 173.04 ZAR
Availability: InStock
Rating: 1.00 (1 reviews)

SKU: INTEGRA KIT 1AP-1/3ASU

BRAND: Integra

R 199.00_{(inc VAT)}
R 173.04_{(ex VAT)} R 225.00 You Save 23% (R 51.96)

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Clearance Sale, Security, Access Control & Surveillance

Type: Access Automation

Category: Clearance Sale, Intercom and Accessories

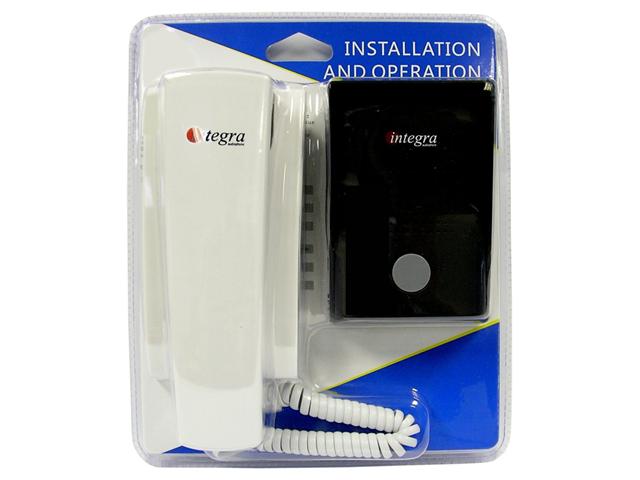

Audio Door Phone Kit , consists of 1 x Audio Outdoor unit and 1 x Indoor Handset

Features

Opening the electric lock
Tamper Sensor in outdoor station (tamper) : The outdoor station has a tamper sensor, that is, if outdoor station is violated, an audible alarm will always sound both in indoor phone and outdoor station. The alarm sound is similar to the bell
4-wire installation
Up to 3 extensions (indoor phones)
Allows installation of EXIT buttons to open the lock.(connect to cable “GND” and “Signal’)
EXIT Button : If you have EXIT button installed at any place, simply press it for more than 1 second to open the lock

Specifications

Outdoor :

Operating voltage : DC 12V (powered by indoor phone)
Lock : 12V/1A
Room Temperature : -10~+60°C
Humidity : 10%~90% no condensing
Dimension : 129x88x51mm

Indoor :

Power Supply : 119~240ACV 50/60HZ automatic
Volume of buzzer : 80dB ±2 @ 1m
Room Temperature : -10~+60°C
Humidity : 10%~90% no condensing
Dimension : 188x82x56mm
Power Consumption : 5W

Cabling :
Before installing the product, check the distance between indoor and outdoor and choose the most suitable cable for your installation according to the specification below:

0.4mm² mm² up to 30m
0.5mm² up to 50m
0.75mm² up to 100m
1.5mm² up to 200m
To install the lock, always use 1.5mm² cable for distances up to 50m
To connect the outdoor station to the indoor phone, use 1.5² cable

Additional Information

Device	Door Phone Kit
Type	Audio

Enhance your home security with the INTEGRA KIT 1AP-1/3ASU Audio Door Phone Kit. Featuring a robust outdoor unit and an indoor handset, it offers tamper alerts, electric lock control, and expandable options for up to three devices. Enjoy peace of mind with easy installation and reliable performance, ensuring you never miss a visitor.
