KDM IPC2253-FNB-PIR40
SKU: KDM IPC2253-FNB-PIR40
BRAND: Kedacom
Sold Out
R 1,719.25 (inc VAT) R 1,495.00 (ex VAT)

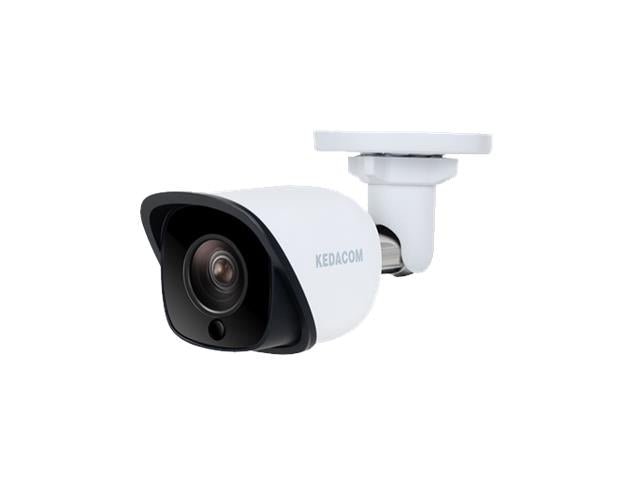

Kedacom IP Mini Bullet Camera, 2MP 3.6mm, 40M, Smart IR Function, 10/100M RJ45 Interface, H.265/264/ MJPEG, 1/2.8" CMOS, Lens Starlight & Ultra WDR, Micro SD Card Slot upto 128GB, IP67
IP Mini Bullet Camera
Feature(s)
Excellent Image Quality
2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
High definition and smooth picture, 1080p@30fps
H.265 video codec, saves up to 50% bandwidth and storage
Ultra low illumination, 0.002lux with color picture
120dB Ultra WDR
3D noise reduction / HLC
Specifications
Camera
Image Sensor : 1/2.8’’ progressive scan CMOS
Pixels : 2.0 Megapixel
Min. Illumination
Color: 0.002lux @ (F2.0, AGC ON)
B/W: 0.0002lux @ (F2.0, AGC ON); 0lux with IR
Shutter Speed : 1 ~ 1/30,000s
Day / Night : Auto (ICR) / Color / B/W
Wide Dynamic Range : Ultra WDR, >=120db
S/N Ratio : >50dB
White Balance : Auto / Manual
Gain Control : Auto / Manual
Backlight Compensation : Off / WDR / BLC / HLC
Lens
Mount Type : M12
Focal Length : 3.6mm (-L0360) / 6mm (-L0600)
Angle of View : 78.6° (-L0360) / 53.2° (-L0600)
Infrared
IR Distance : 40m (-L0360, -L0600)
IR Intensity : Smart IR
Video
Compression : H.265 / H.264 / MJPEG
Image Resolution
Main stream: 1080p
Secondary stream: D1
Frame Rate
Main stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate : 64kbps ~ 8Mbps
Bitrate Control : VBR / CBR
Dual-stream : Supported
Caption : Date and time / Alarm / Customized
Privacy Masking : Up to 4 zones
Motion Detection : Up to 4 zones
ROI : Supported
Digital Noise Reduction : 3D noise reduction
Digital Defog : Supported
Image Flip : Flip / Mirror / Rotation at 90°, 180°, 270°
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface : IPC Control (IE, Firefox, Chrome)
Max. User Access : Max. 10 Users (includes 2 internal)
Application Programming : ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) : Supported
Alarm
Alarm Triggers : Network disconnect / Disk full / Disk error
Intelligent : Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events : Alarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet : 10/100M, RJ45 interface
Memory Slot : Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature : -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity : 10% ~ 95%
Protection Level : IP67
Electrical
ower : 12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption : Max. 7W
Mechanical
Weight : 0.6 kg / 1.32lb (Gross Weight)
Dimensions : 161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’
Mounting Bracket : Bracket included
Downloads
Additional Information
Device
Camera
Type
IP | Mini | Bullet
Enhance your security with the KDM IPC2253-FNB-PIR40 Mini Bullet Camera. Featuring 2MP resolution, Smart IR, and Ultra WDR, it delivers exceptional image quality even in low light. With easy installation and support for up to 128GB storage, protect your home or business effortlessly. Experience peace of mind with advanced motion detection and robust IP67 weatherproofing.
