NVR XY-8216

Name: NVR XY-8216 - Communica [Part No: NVR XY-8216]
Brand: Xytron
SKU: NVR XY-8216
Price: 1535.09 ZAR
Availability: InStock

SKU: NVR XY-8216

BRAND: Xytron

In Stock
R 1,765.35_{(inc VAT)}
R 1,535.09_{(ex VAT)}

Collections: Security, Access Control & Surveillance, Xytron

Type: CCTV Products & Accessories

Category: NVR, Video Recorders

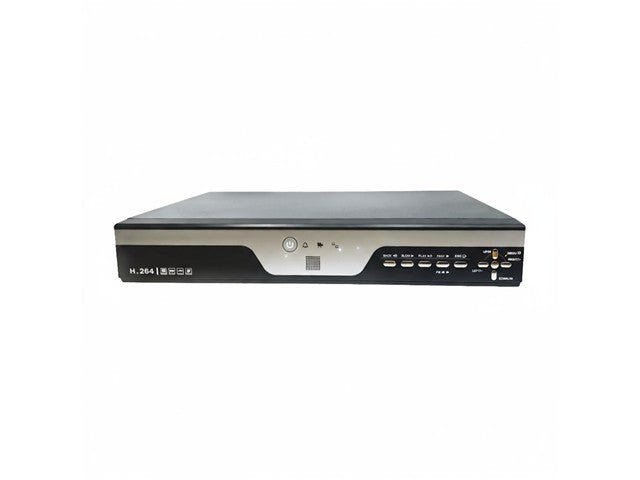

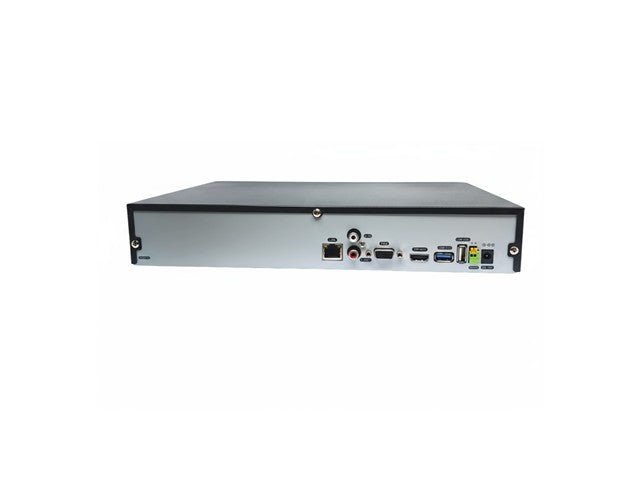

16 ch 1080P Network Video Recorder with VGA and HDMI Output takes 2 SATA Hard Drive (not included)

16 Ch NVR

Feature(s)

Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources*
GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
ONVIF standard protocol(Onvif agreement with standard)can be connected with the front –end IPC protocol support onvif.
Support Strong cloud service,one step to do remote control easily
Support 8CH 1080P/16CH 960P* recording.
Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
Multiple record mode:Auto continuous/timing recording/motion detection/trigger alarm recording mode
Recording playback support:Normal play/Speed play/Fast back play/Manual single-frame slow play
Support drag the progress bar can be targeted playback time directly
Support Multiple channel playback (Support 2CH 1080P/4CH 960P* playback simultaneously, each channel can be enlarge to full screen)
Powerful net service:support IE browser(built -in)and sub-control software to monitor and manage network focused on multiple DVR
Strong network function:support DHCP/PPPOE/FTP/DNS/DDNS/NTP/UPNP/EMAIL/IP authority/IP search, alarm center, etc, complete enclosure (WEB?CMS?SDK), to easily achieve interconnection.
Supports remote surveillance up to 10 users simultaneously via the Internet Explorer web browser
Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
Support pre-alarm recording (before 10 sec),not lose any suspicious screen
Support two SATA HDD
Support Mobile phone remote view by Symbian;Windows Mobile;Android system;Iphone;Blackberry.
Support High-Definition VGA and HDMI(1080P) output.

Specifications

Video Compression Format : H.264
Video Standard : NTSC / PAL
GUI OSD : YES
Video Input : 16CH 960P / 8CH 1080P
Video Output : 1CH VGA &HDMI output
Audio Input/Output : 1CH Audio Input/Output
Image Quality Setting : Supper Best,Well,Very good,Well,Good Common
Hard Disk Storage : Support two SATA HDD,
Alarm Input/Output : No
Multiplex Operation : Live display/record/playback/backup/network transmit
Recording Mode : Manual/Timer/Motion detection/alarm
Playback Mode : Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
Backup Device : USB flash drive,USB hard disk,USB and network backup
Pre-alarm Recording : Recording for 10 seconds before alarming
Network Protocol : TCP/IP/PPPOE/DDNS/FTP/NTP and UPNP
Ethernet remote view : Support remote surveillance up to 10 users simultaneously
CMS software : YES
Mobilephone View : YES
Electronic zoom : YES
VGA Interface : YES
Log record function : YES
Image Tour : YES
IR Remote control : YES
Video Loss Detection : YES
Video Adjustable : Hue /Saturation /Contrast /Brightness adjust
PTZ Control : 1CH 485
USB Mouse : YES
Power Source : DC 12V
Key Lock(Password Protection) : YES
Power-down recovery function : YES
Size(mm) : 325(W) x 52(H) x 230(D)

Downloads

Datasheet - NVR XY-8216

Additional Information

Device	NVR
Type	16 Ch
Download Links	Downloads : Xytron_CMS_DVR_NVR
