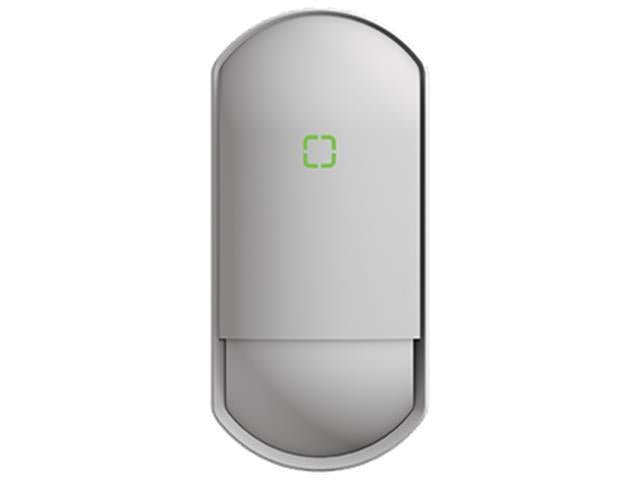

Optex FlipX Wired Indoor PIR- Small Pet Friendly, Equipped with Rotatable Lens, Easy to switch from wide to Narrow Detection , with Bracket
FlipX Wired Indoor PIR
Overview
The FlipX Standard comes with an easily viewable LED indicator in green so you are sure the sensor is turned on and working. It also comes with a 180 degree cover lock which can be easily removed to rotate the lens and change the detection area from wide to narrow.
Features
- Hardwired indoor PIR with rotatable lens
- Wide detection up to 12m, 85 degree, and narrow detection up to 18m
- Superior pet tolerance with new pyroelectric element
- Variable high mount 2.0-3.0 meters
Applications
Specifications
- Mounting Height : 2.0 to 3.0 m (6'7" to 9'8")
- Coverage:
- Wide: 12m (40') 85
- Narrow: 18m (60') 5
- Sensitivity : 1.6 (2.9F) at 0.6 m/s (2'/s): 2.4m (8') mounting height
- Alarm Period : 2.0 0.5s
- Warm-up Period : Approx. 60s (LED blinks)
- LED Indicator : Green: [1] Warm-up [2] Alarm
- Power Input : 9.5 to 16VDC
- Current Draw : 12mA Max. at 12VDC
- Relay Output
- Alarm : N.C 24VDC O.1 A max
- Tamper : N.C.24 VDC 0.1 A max
- Operating : Temperature : -20C to +50C (-4F to +122F)
- Temperature Compensation : Digital
- Relative humidity : 95% RH max.
- Dimension : H:130 mm x W: 62mm D: 56mm
- Weight : 120g (4.20 oz)
Additional Information
| Device |
PIR |
| Type |
FlipX | Wired Indoor |
Enhance your home security with the OPTEX FLX-ST-BRKT, a pet-friendly wired indoor PIR sensor. Featuring a rotatable lens for customizable wide or narrow detection up to 18m, this reliable sensor ensures peace of mind with its easy-to-view LED indicator. Perfect for any room, it combines advanced sensitivity with superior pet tolerance for optimal safety.
