9 on-board zones (18 with ATZ); expandable to 32 zones
Supports REM3, two-way communication (requires RTX3, V1.31 or higher)
3 PGM outputs
No landline dialer (IP and/or GPRS only)• Supports StayD
4-wire expansion bus (connect up to 15 keypads)
Supports up to 16 PGMs
2 partitions (1 partition when used with K636 keypad)
32 user codes
Supports GPRS and GSM Module (PCS series), IP Module (IP100), and Voice Module (VDMP3)
1.1A switching power supply
In-field firmware upgradable via 307USB
Menu-driven programming for the Installer, Master, and Maintenance codes
Phone #s: 3 for monitoring station, 5 for personal dialing, and 1 for pager reporting
Automatic Daylight Savings Time feature
Push-button software reset (reset to default values and restart)
Direct connect at 9.6K baud with BabyWare
256 events buffered
Supports REM3, one-way communication only (requires RTX3, V1.31 or higher)
Supports RX1 Wireless Receiver, as well as RTX3 Wireless Expansion Module
Specification

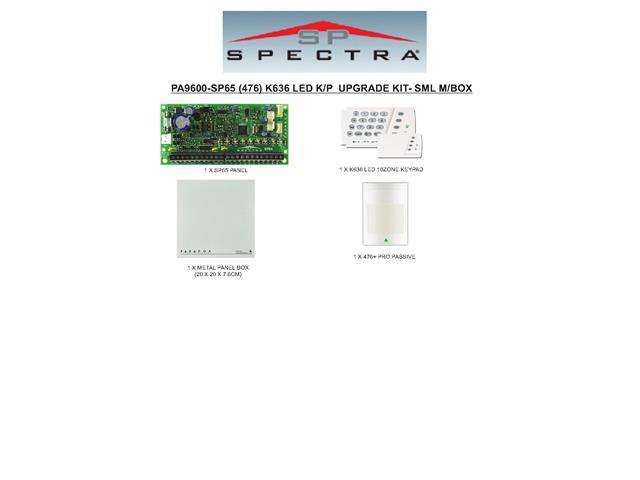

Contents
1 x SP65 Alarm Panel 8 zone
1 x K636 LED Keypad
1 x Metal Box 20 x 20.5 x 7.6cm
1 x 476+ Pro PIR Passive
Upgrade your security with the PDX KIT PA9600, featuring a robust SP65 control panel and K636 LED keypad. With expandable zones, advanced communication support, and user-friendly programming, this kit ensures comprehensive protection for your home or business. Enjoy peace of mind with cutting-edge technology and effortless control at your fingertips.
