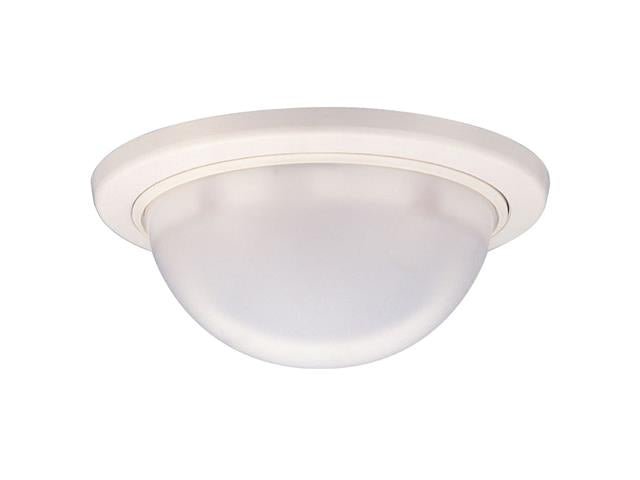

TAKEX PA6810E

Name: TAKEX PA6810E - Communica [Part No: TAKEX PA6810E]
Brand: Takex
SKU: TAKEX PA6810E
Price: 519 ZAR
Availability: InStock

SKU: TAKEX PA6810E

BRAND: Takex

In Stock
R 596.85_{(inc VAT)}
R 519.00_{(ex VAT)}

Category: PIR

Ceiling Mount PIR Upto 4.9m Mounting Height, 360° Coverage:Ø18m, 10.5~ 30VDC 25mA

Ceiling Mount PIR

Model : PA6810E
Detection system : Passive Infrared
Coverage : 360°Round φ15.2m (φ50') Max.
Sensitive zone : 33 pairs
Supply voltage : 7 to 28V DC (non-polarity)
Current consumption : 11mA Max. (+2mA at L/C use)
Alarm signal : Dry contact (Semi-Conductor) (N.C. / N.O. changeover) Reset : Approx. 2 sec., 24V (AC/DC) 0.25A (protective resistor 3.3Ω)
Alarm memory :
3 minutes ﬂashing,
47 minutes lighting and automatically reset
Alarm LED :
- Red : Flashing at warming up
- Lighting at alarm (LED disabled)
Memory LED
- Yellow : Flashing at memory activated
- Lighting at memory indication
Count changeover : 1 / 2 / 3 / 4 changeover
Ambient temperature range : -15°C to +55°C (+5°F to +131°F) without condensation
Mounting position : Indoor ceiling (wall mount with optional attachment BCW-401)
Wiring connection : Terminals on separate base unit
Weight : 110g (3.85oz)
Appearance : Body ,Cover : Resin
Accessory : Tapping screw : 2 pcs. Sensor locking screw : 1 pce.

Device	PIR
Type	Ceiling Mount
