TP-LINK VIGI Dome Network Camera 2MP 2.8mm Lens, 1/3” CMOS, 30m IR, MAX RES:1920x1080, DWDR, H2.65+, BLC/3D DNR/HLC/SMART IR, 3D DNR, 1xRJ45 10/100M, ONVIF, PoE (802.3af/at), IP67

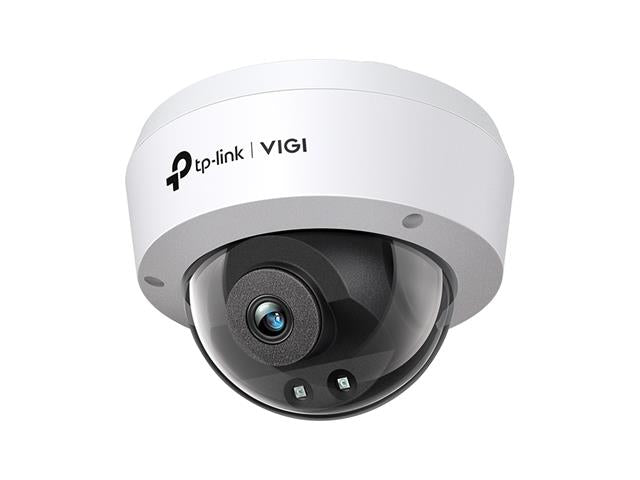

VIGI Dome Network Camera

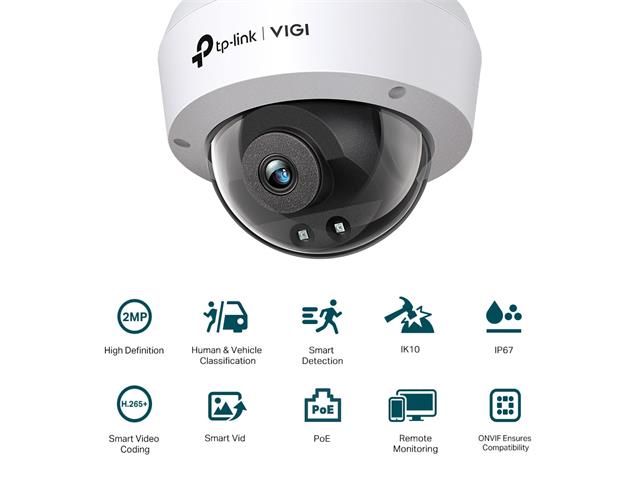

Feature(s)
-
2MP Full-High Definition: The VIGI C220I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
-
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
-
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
-
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
-
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
-
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
-
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C220I comes with two different lens types to better suit your security needs.
-
Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Specifications
Camera
- Product Model: VIGI C220I
- Image Sensor: 1/3” Progressive Scan CMOS
- Min. Illumination: Color: 0.1 Lux; 0 Lux with IR
- Day & Night: IR Cut Filter
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
Lens
- Focal length: 2.8 mm
- Aperture: 2.8mm: F2. 2
- Focus: Fixed
- FOV: 2.8mm: 88.2°/48.7°/106.5° (H/V/D)
IR
- IR Range: 30m
- Wavelength:850nm
Compression Standard
- Video Compression: Main Stream: H.265+/H.265/ H.264+/H.264
Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate: 64 Kbps to 4 Mbps
Smart Feature-set
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection,
People detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object
Detection, Object Removal Detection, Vehicle Detection
- Basic Event : Motion Detection, Video Tampering Detection, Exception ( illegal login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
- Max. Resolution: 2MP (1920 × 1080)
- Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
- Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Image Settings : Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°)
- Day/Night Switch: Day/Night/Auto/Schedule
Network
- Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- General Function: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- API: ONVIF
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- User/Host: Up to 32 Users
- Client: VIGI App, VIGI Security Manager, VIGI NVR
Interface
- Communication Interface: 1 RJ45 10/100M Self-Adaptive Port
- Video Output: No
- Reset Button: N/A
General
- Operating Temperature: -30–60 °C
- Power Supply: PoE (802.3af/at, class 0)
- Power Consumption PoE: class 0
- Ingression Protection: IP67
- Vandal Resistant: IK10
- Material:Plastic
- Product Dimensions 115 ×115 × 86 mm
- Certification: CE/BSMI/VCCI/ONVIF
